FATH

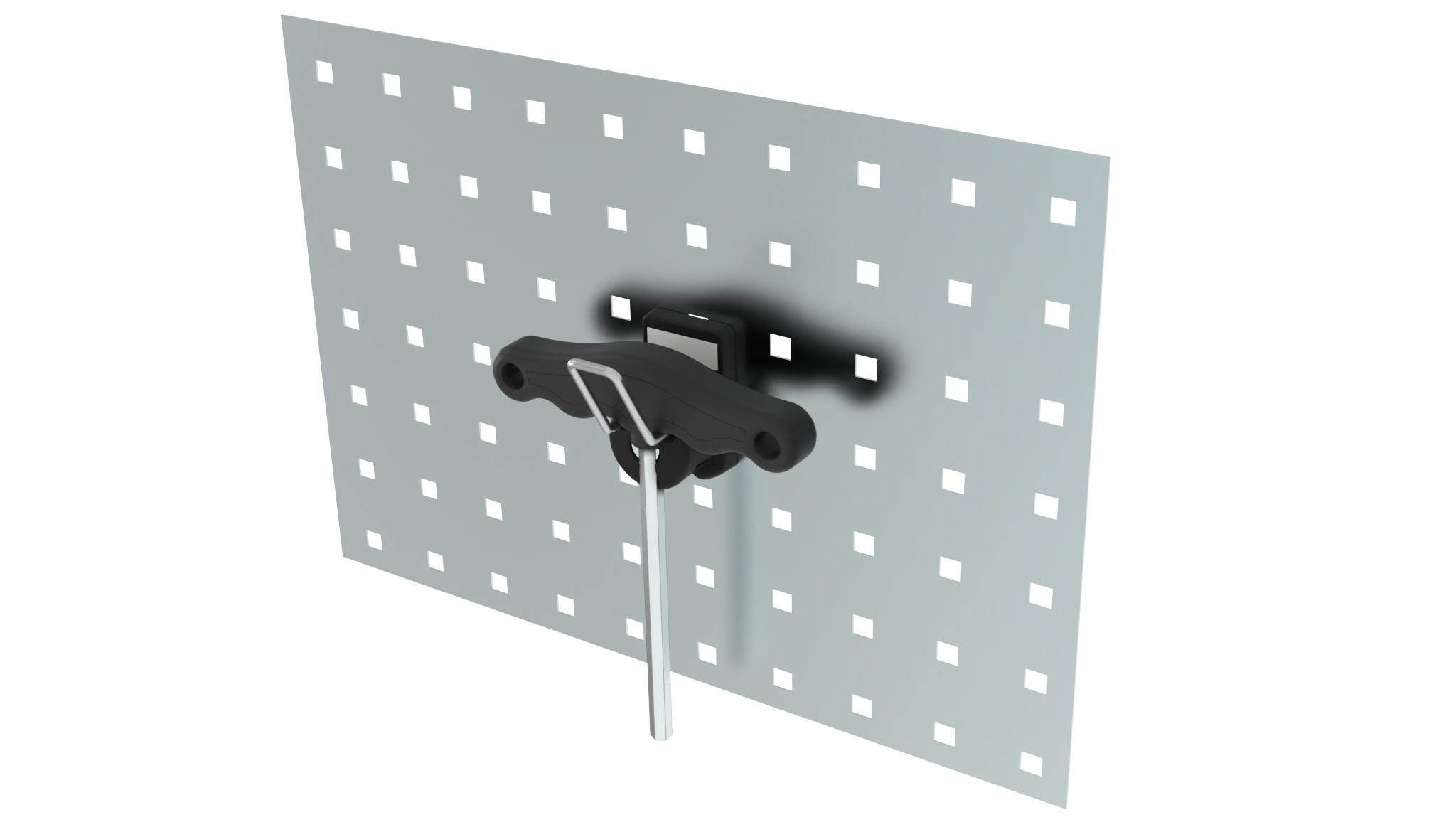

Tool Hook FX 7/38 - 24 for Square Holes 9 x 9 (8.7 x 8.7)

Part #: 6TP38A3040ESDS01

Ready to use tool hook, 360° turnable, for perforated metals up to 1.4 mm thick; To organize workstations, with labeling area for standard labels

Quantity

Price, availability and delivery time — we send one quote for all products.

Question about this product?

Technical questions, custom versions or quantities — write or call us.

Description 6TP38A3040ESDS01

Color

Rear mounting holder: Black

Front locking holder: Black

Description

Ready to use tool hook, 360° turnable, for perforated metals up to 1.4 mm thick;

To organize workstations, with labeling area for standard labels

Material

Rear mounting holder ESD electrostatical discharging version: Plastic PA, carbon fiber reinforced

Front locking holder ESD electrostatical discharging: Plastic PA, glass ball reinforced with carbon

Wire: Stainless steel SS304

Spring: Spring steel SS313

Screw: Steel

Nut: Steel

Specials

Other colors on request,

For other sheet metal thicknesses on request

Surface

Screw: Zinc plated

Nut: Zinc plated

Tip

For profiles 40 / 45, slot 8 / 10 see 6TH240NA3040S01

For round tubes D28 / D30 see 6TH2D283A3040EDS1-
