FATH

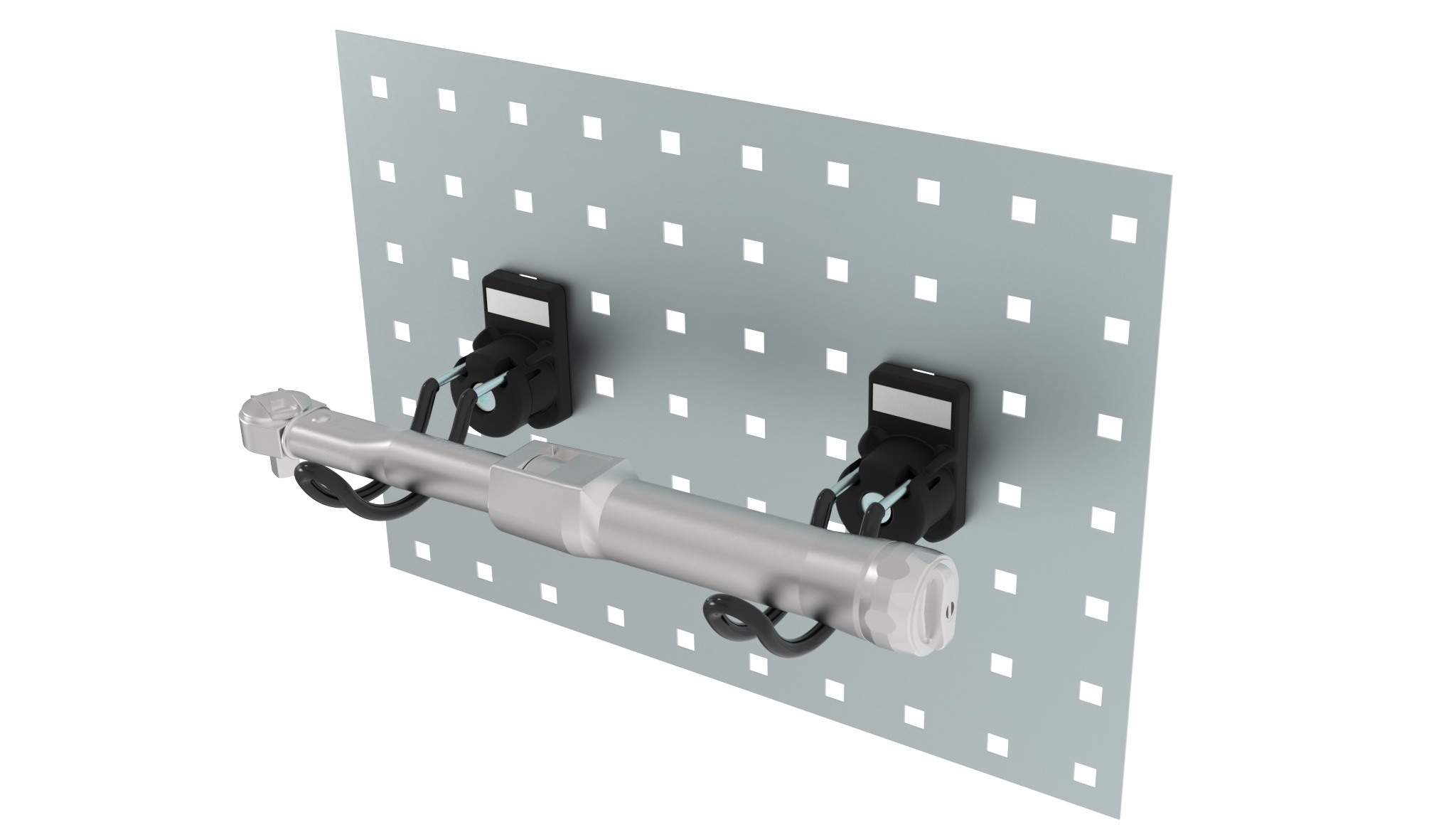

Tool Hook FX R35 - 27, Rubberized for Square Holes 9 x 9 (8.7 x 8.7)
Part #: 6TP38R4091S01
Ready to use tool hook, 360° turnable, for perforated metals up to 1.4 mm thick; Rubber coated wire to prevent tools from slipping; To organize workstations, with labeling area for standard labels
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 1 piece
- Weight
- 88.9 g
- ECLASS
- 23360192
- Category
- Tool Holders FX for Square Holes 9 x 9 (8.7 x 8.7)
Description 6TP38R4091S01
- Color
Wire: Black coated
Rear mounting holder: Black
Front locking holder: Black
- Description
Ready to use tool hook, 360° turnable, for perforated metals up to 1.4 mm thick;
Rubber coated wire to prevent tools from slipping;
To organize workstations, with labeling area for standard labels
- Material
Rear mounting holder: Plastic PA, carbon fiber reinforced
Front locking holder: Plastic PA, glass ball reinforced
Wire: Stainless steel SS304
Spring: Spring steel SS313
Screw: Steel
Nut: Steel
- Specials
Other colors on request,
For other sheet metal thicknesses on request
- Surface
Wire: PVC coated
Screw: Zinc plated
Nut: Zinc plated
- Tip
For profiles 40 / 45, slot 8 / 10 see 6TH240NR4091S01
For round tubes D28 / D30 see 6TH2D283R4091S01
Properties
| Application Area | Industrial Work Stations |
|---|---|
| Pack Quantity | 1 piece |
| Model | Pre-assembled |

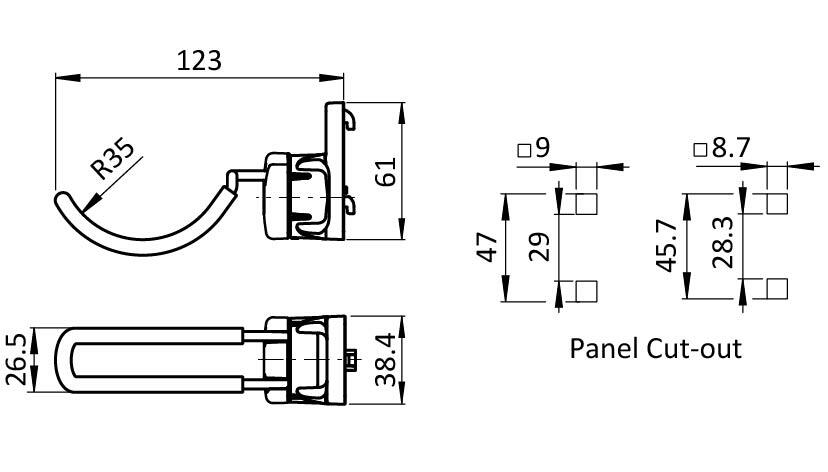

CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
Product family
Matching products
Referenced in the description — nuts, plates, caps, assembly sets.
