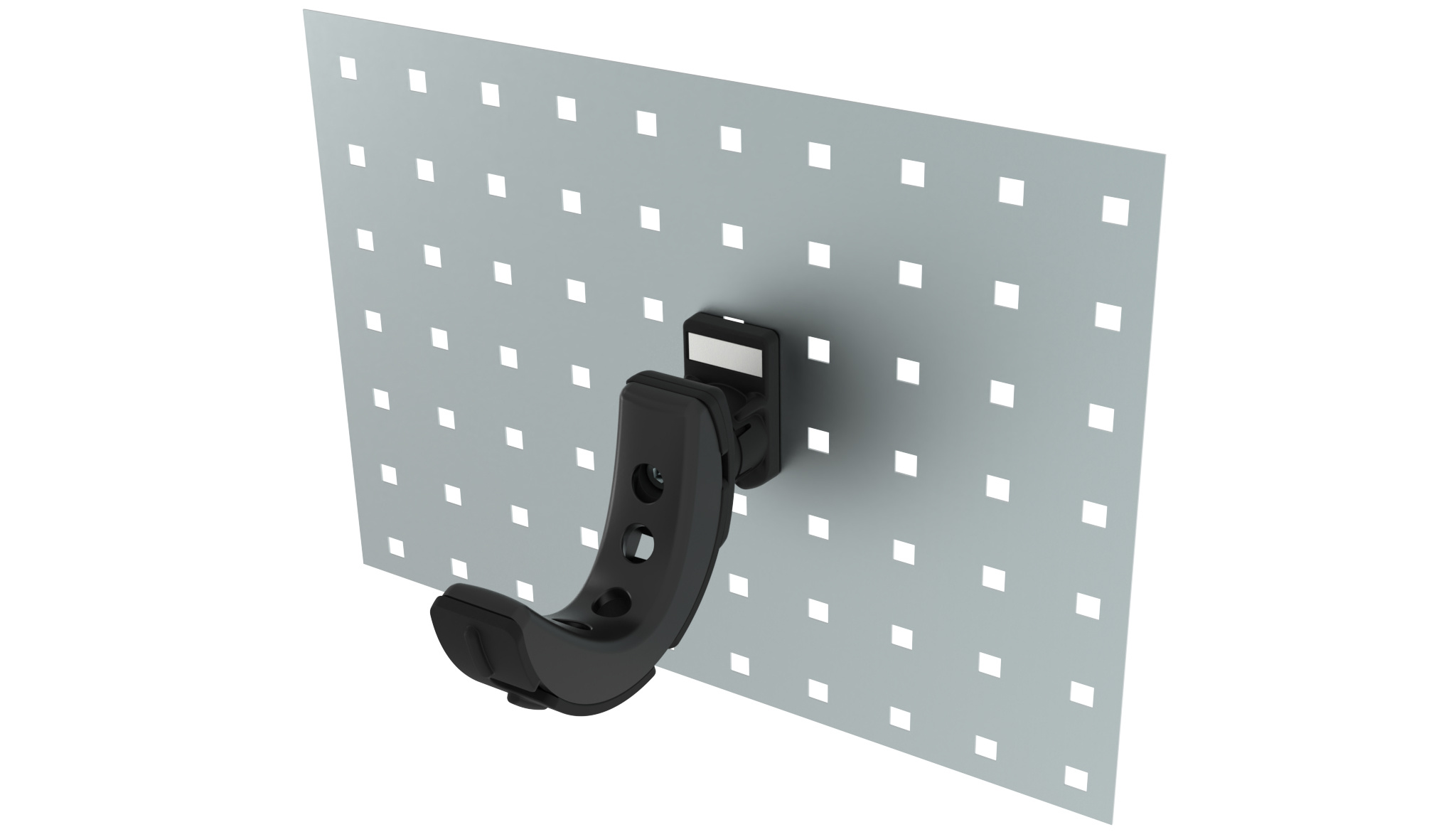

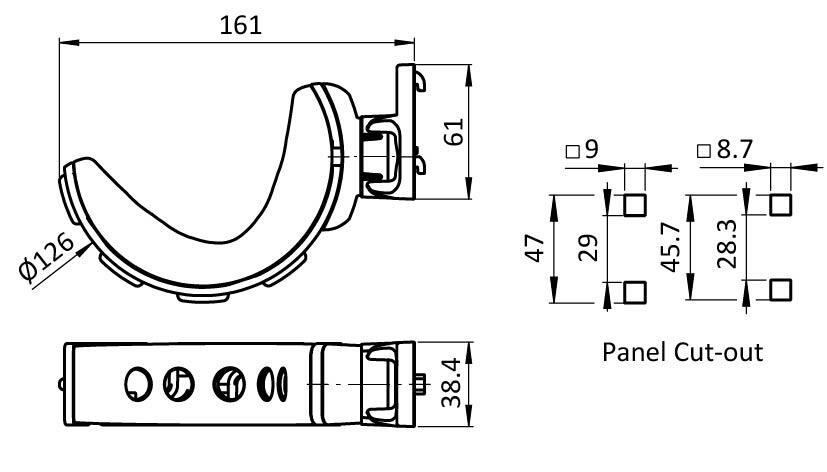

Tool Tray PARABOL FX for Square Holes 9 x 9 (8.7 x 8.7)

Description 6TP38V12591ESDS01

Color

Rear mounting holder: Black

Front locking adapter: Black

Tool tray: Black

Tool insert: Black

Description

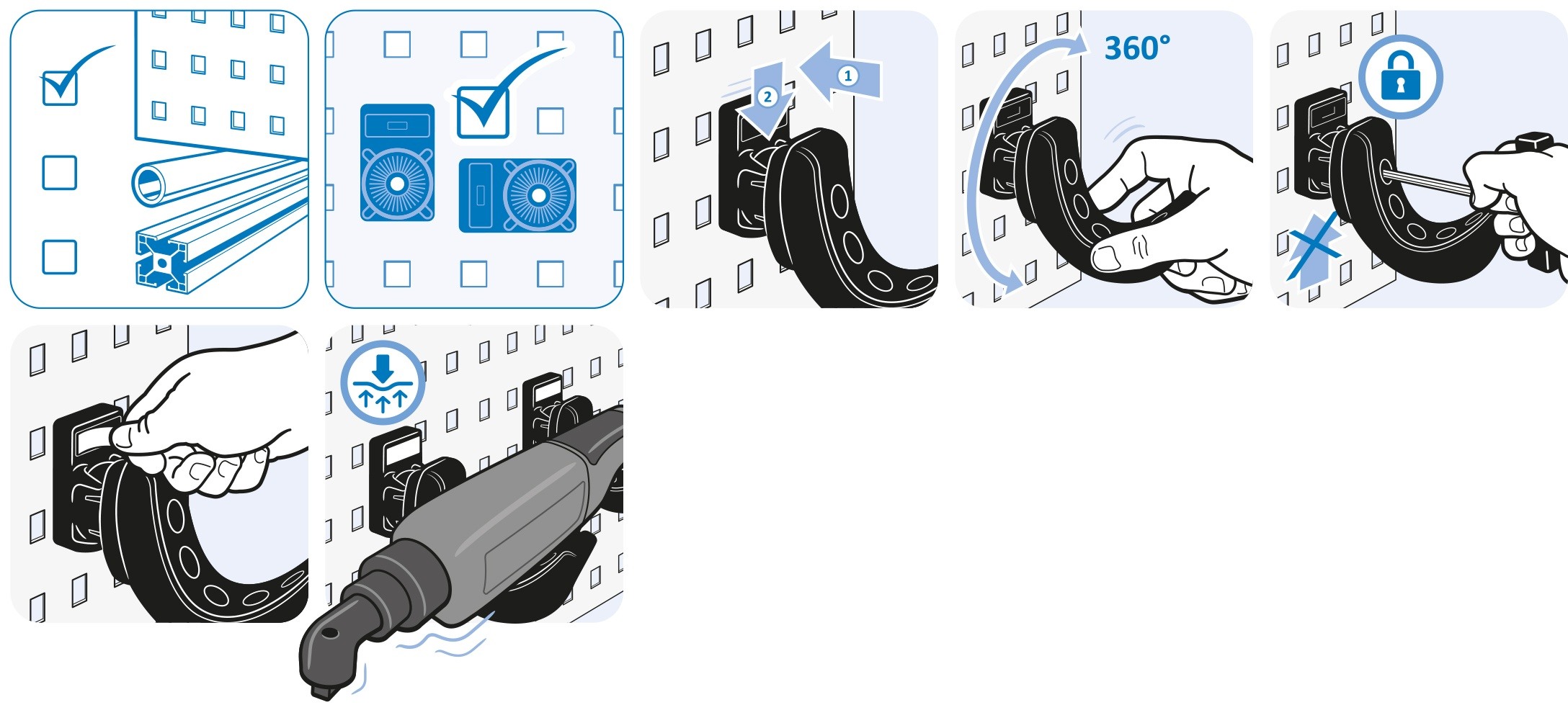

Ready to use tool tray, 360° turnable, tilt-adjustable in 5 ways, for perforated metals up to 1.4 mm thick;

Suitable for heavy tools or nutrunners; tool friendly surface;

To organize workstations, with labeling area for standard labels

Material

Rear mounting holder ESD electrostatical discharging version: Plastic PA, carbon fiber reinforced

Front locking adapter ESD electrostatical discharging: Plastic PA, glass ball reinforced with carbon

Tool tray ESD electrostatical discharging version: Plastic PA, glass ball reinforced with carbon

Tool insert ESD electrostatical discharging version: Plastic TPE, ≈ 80 Shore A, with carbon

Spring: Spring steel SS313

Screw: Steel

Nut: Steel

Specials

Other colors on request,

For other sheet metal thicknesses on request

Surface

Screw: Zinc plated

Nut: Zinc plated

Tip

For profiles 40 / 45, slot 8 / 10 see 6TM840NV12591S01

For round tubes D28 / D30 see 6TM8D283V12591ESDS01
