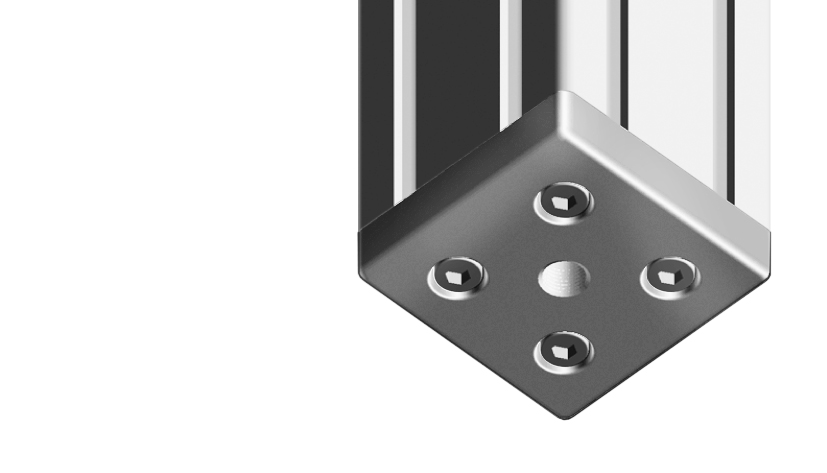

Transport and Base Plate AL 80 x 80
Part #: 093TA80800808R · 5 variants

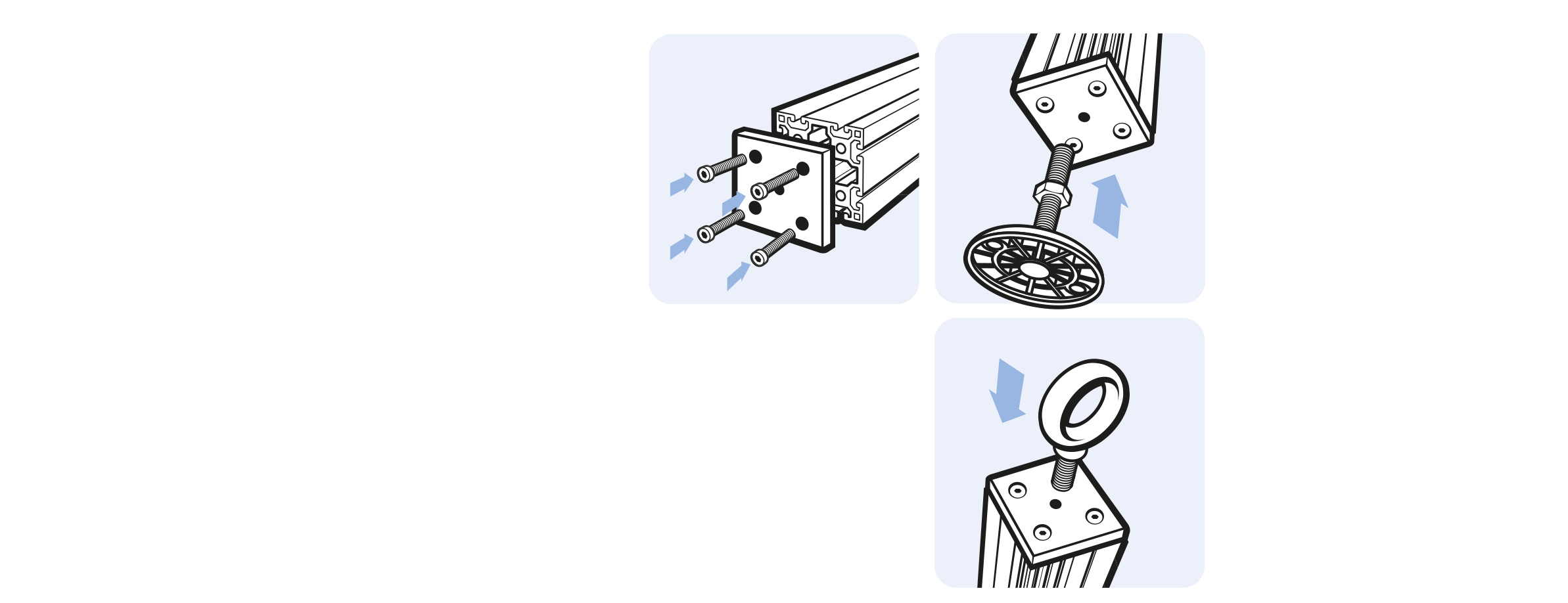

To mount leveling feet, rollers, hooks or similar components; connects to the profile sideways
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 166.5 g
- ECLASS
- 23360290
- Category
- Transport and Base Plates
Versions
Select a version — the description and files below follow your selection.
| Part # | M | ØD (mm) | Add 1 pc to enquiry |
|---|---|---|---|
| 093TA80800808R✓ Selected | - | 9 (M8) | |
| 093TA80801008R | M10 | 9 (M8) | |
| 093TA80801208R | M12 | 9 (M8) | |
| 093TA80801608R | M16 | 9 (M8) | |
| 093TA80802008R | M20 | 9 (M8) |
Description 093TA80800808R
- Description
To mount leveling feet, rollers, hooks or similar components; connects to the profile sideways
- Material
Aluminum die-cast
- Specials
Other surfaces, other colors on request
- Surface
Plain
Properties
| Profile Type | Profile Type I |
|---|---|
| Product Feature | ESD |
| Profile Form | T-slot Profiles |
| Pack Quantity | 10 pieces |
| Model | Aluminum die-cast |

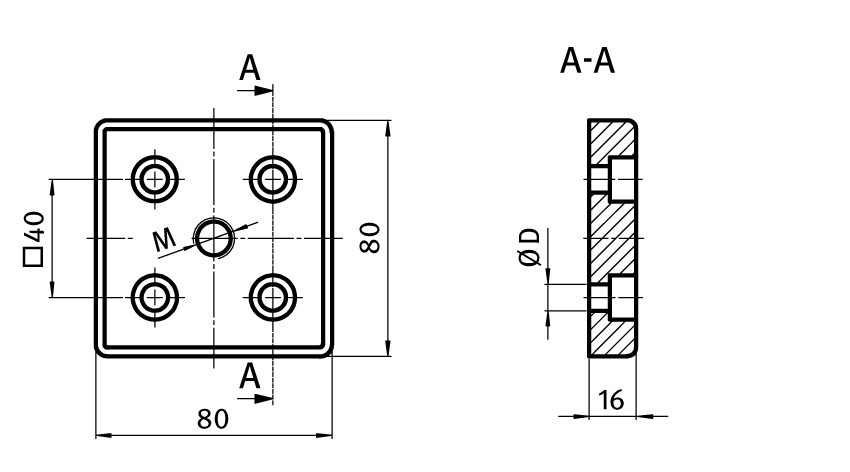

Drawing
From the FATH catalogue (EC-EN, p. 95)
