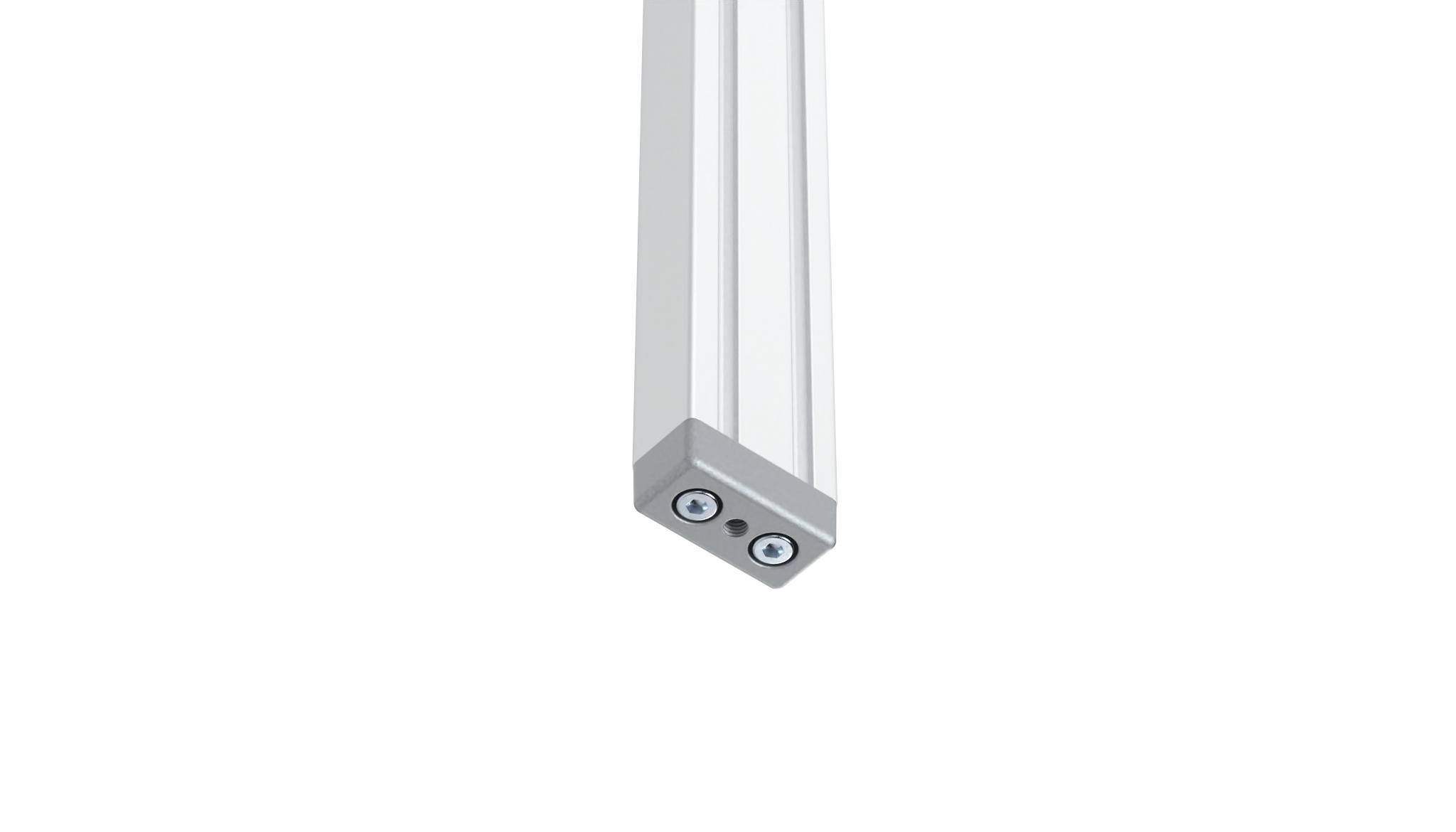

Transport and Base Plate ZN 20 x 40, Plain
Part #: 093T20400605R · 2 variants
To mount leveling feet, rollers, hooks or similar components; screw joint to the face of the profile
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 35 g
- ECLASS
- 23360290
- Category
- Transport and Base Plates
Versions
Select a version — the description and files below follow your selection.
| Part # | M | ØD (mm) | Add 1 pc to enquiry |
|---|---|---|---|
| 093T20400605R✓ Selected | - | 5.5 (M5) | |
| 093T20400805R | M8 | 5.5 (M5) |
Description 093T20400605R
- Description
To mount leveling feet, rollers, hooks or similar components; screw joint to the face of the profile
- Material
Zinc die-cast
- Surface
Plain
- Tip
Powder coated Transport and Base Plate see 093T20400605S
Properties
| Profile Type | Profile Type I |
|---|---|
| Product Feature | ESD |
| Profile Form | T-slot Profiles |
| Pack Quantity | 10 pieces |
| Model | Zinc die-cast |

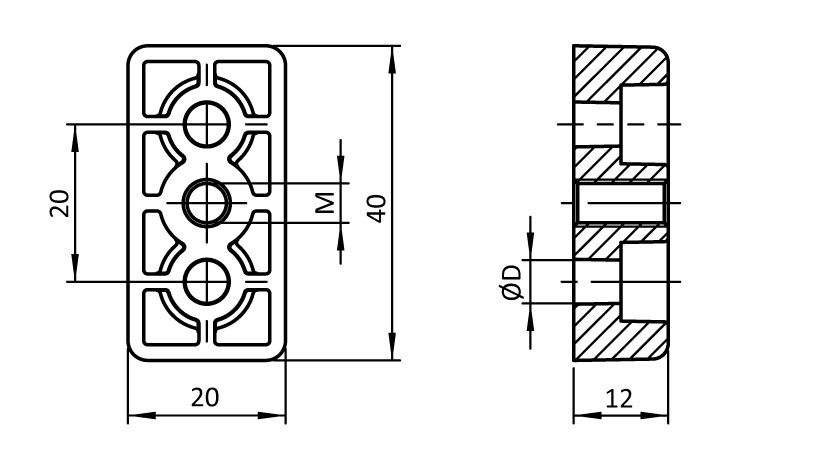

Drawing
From the FATH catalogue (EC-EN, p. 96)
