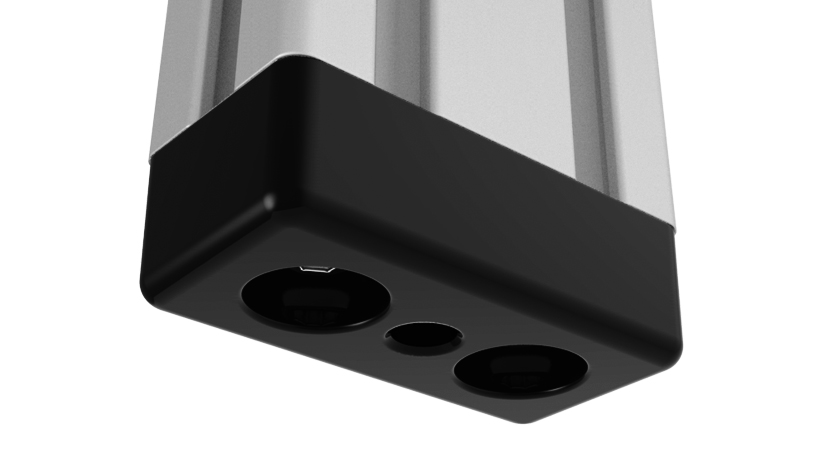

Transport and Base Plate ZN 20 x 40, Powder Coated
Part #: 093T20400605A · 4 variants

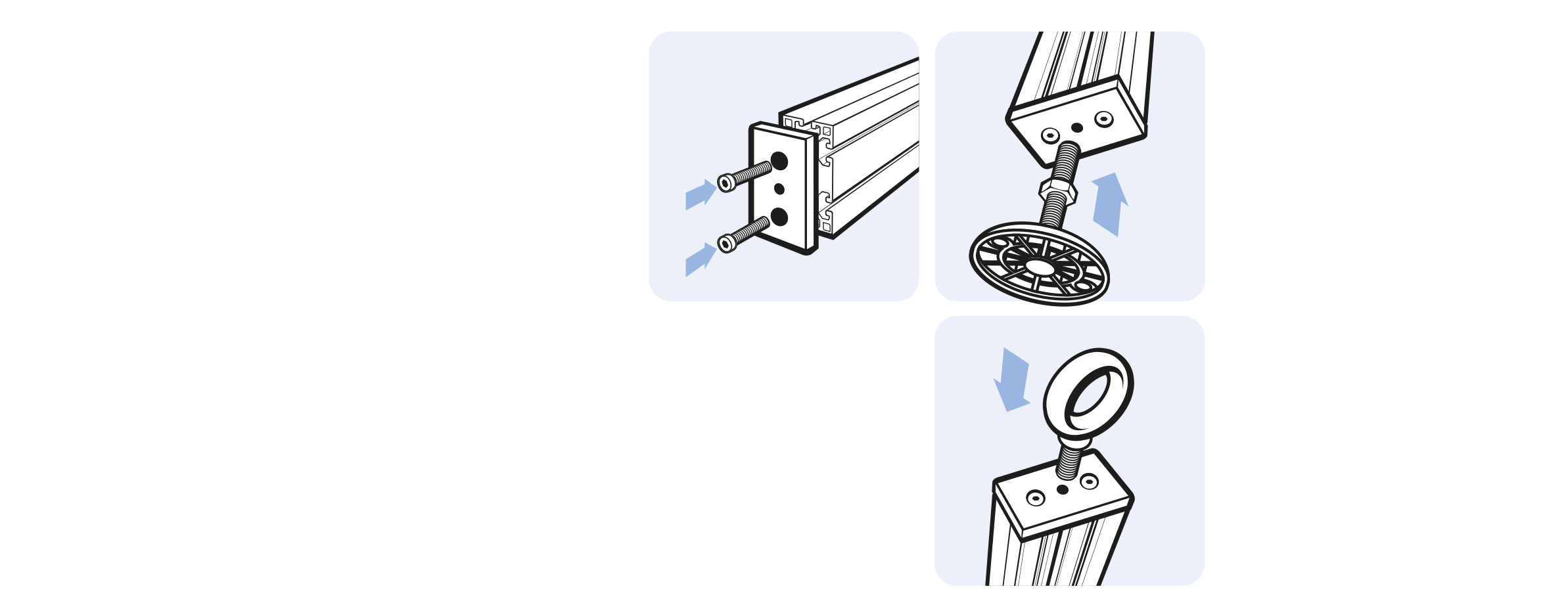

To mount leveling feet, rollers, hooks or similar components; screw joint to the face of the profile
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 36 g
- ECLASS
- 23360290
- Category
- Transport and Base Plates
Versions
Select a version — the description and files below follow your selection.
| Part # | Fig. | Color | M | ØD (mm) | Pack Quantity | Add 1 pc to enquiry |
|---|---|---|---|---|---|---|
| 093T20400605A✓ Selected | ② | Alu color | - | 5.5 (M5) | 10 pieces | |
| 093T20400605S | ① | Black | - | 5.5 (M5) | 20 Stück | |
| 093T20400805A | ② | Alu color | - | 5.5 (M5) | 10 pieces | |
| 093T20400805S | ① | Black | M8 | 5.5 (M5) | 10 pieces |
Description 093T20400605A
- Color
Black, alu colour
- Description
To mount leveling feet, rollers, hooks or similar components; screw joint to the face of the profile
- Material
Zinc die-cast
- Specials
Other surfaces, other colors on request
- Surface
Powder coated
- Tip
Plain Transport and Base Plate see 093T20400605R
Properties
| Profile Type | Profile Type I |
|---|---|
| Pack Quantity | 10 pieces |
| Model | Zinc die-cast |

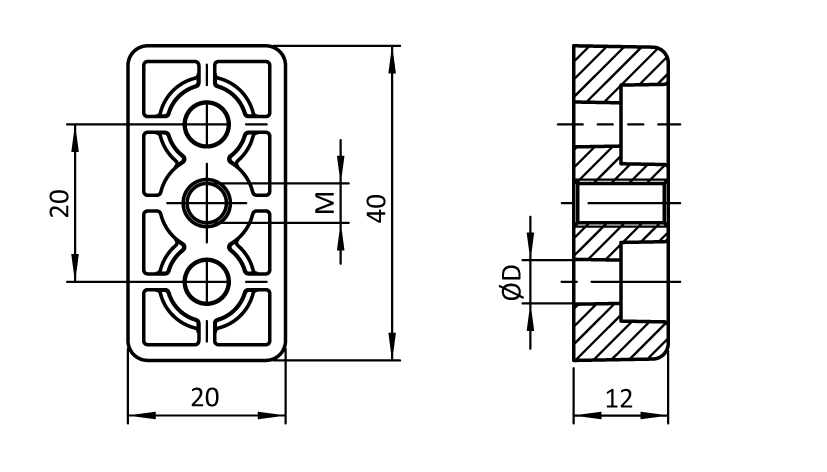

Drawing
From the FATH catalogue (EC-EN, p. 97)
