Transport and Base Plate ZN 30 x 60, Powder Coated
Part #: 093T30600806A · 9 variants
To mount leveling feet, rollers, hooks or similar components; connects to the profile sideways
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 101 g
- ECLASS
- 23360290
- Category
- Transport and Base Plates
Versions
Select a version — the description and files below follow your selection.
| Part # | Fig. | Color | M | ØD (mm) | Add 1 pc to enquiry |
|---|---|---|---|---|---|
| 093T30600806A✓ Selected | ② | Alu color | M8 | 7 (M6) | |
| 093T30600806S | ① | Black | - | 7 (M6) | |
| 093T30600808S | ① | Black | - | 9 (M8) | |
| 093T30601006S | ① | Black | M10 | 7 (M6) | |
| 093T30601008S | ① | Black | M10 | 9 (M8) | |
| 093T30601206S | ① | Black | M12 | 7 (M6) | |
| 093T30601208S | ① | Black | M12 | 9 (M8) | |
| 093T30601406S | ① | Black | M14 | 7 (M6) | |
| 093T30601606S | ① | Black | M16 | 7 (M6) |
Description 093T30600806A
- Color
Black, alu colour
- Description
To mount leveling feet, rollers, hooks or similar components; connects to the profile sideways
- Material
Zinc die-cast
- Specials
Other surfaces, other colors on request
- Surface
Powder coated
- Tip
Plain Transport and Base Plate see 093T30600806R
Properties
| Profile Type | Profile Type I |
|---|---|
| Pack Quantity | 10 pieces |
| Model | Zinc die-cast |

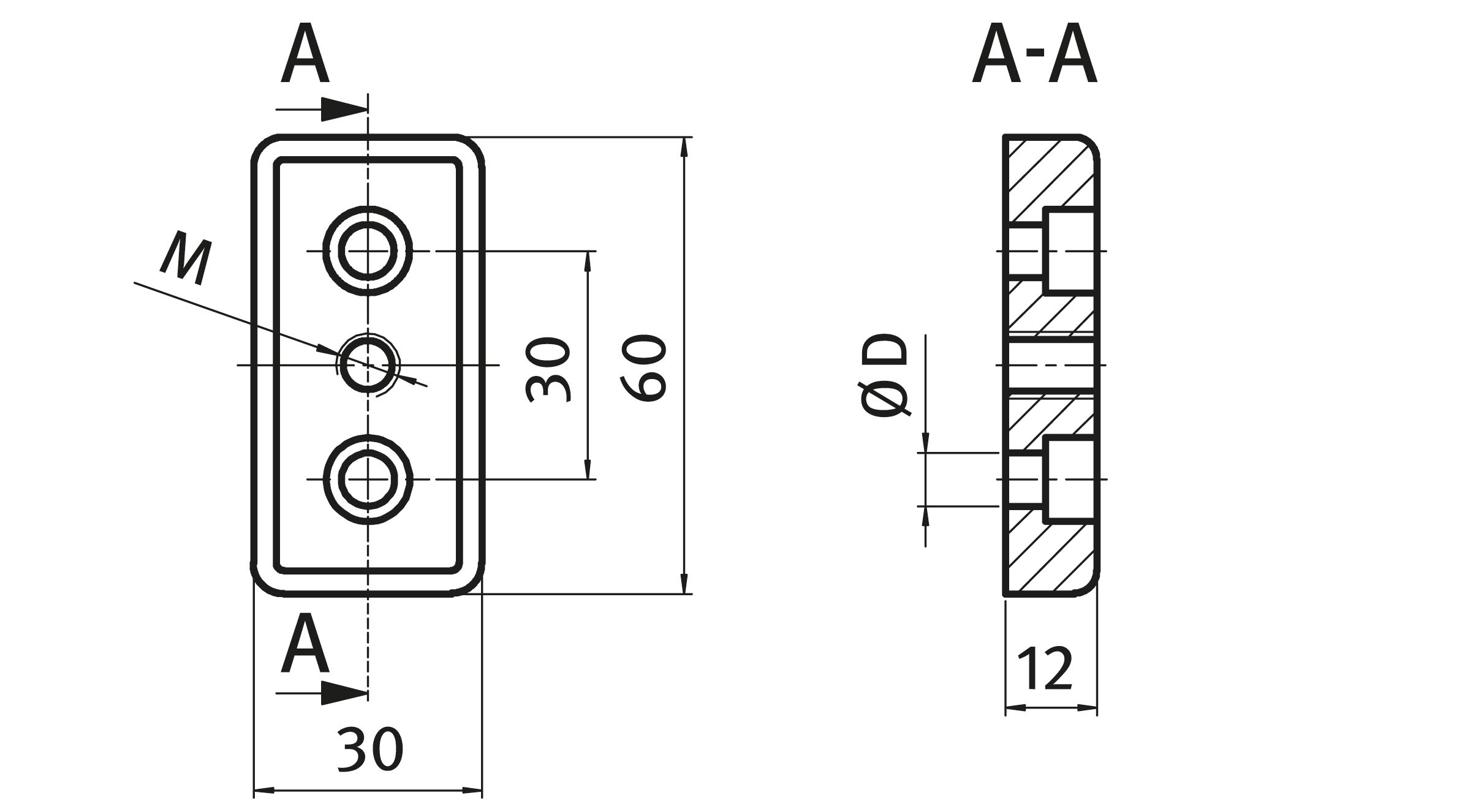

Drawing
From the FATH catalogue (EC-EN, p. 100)
