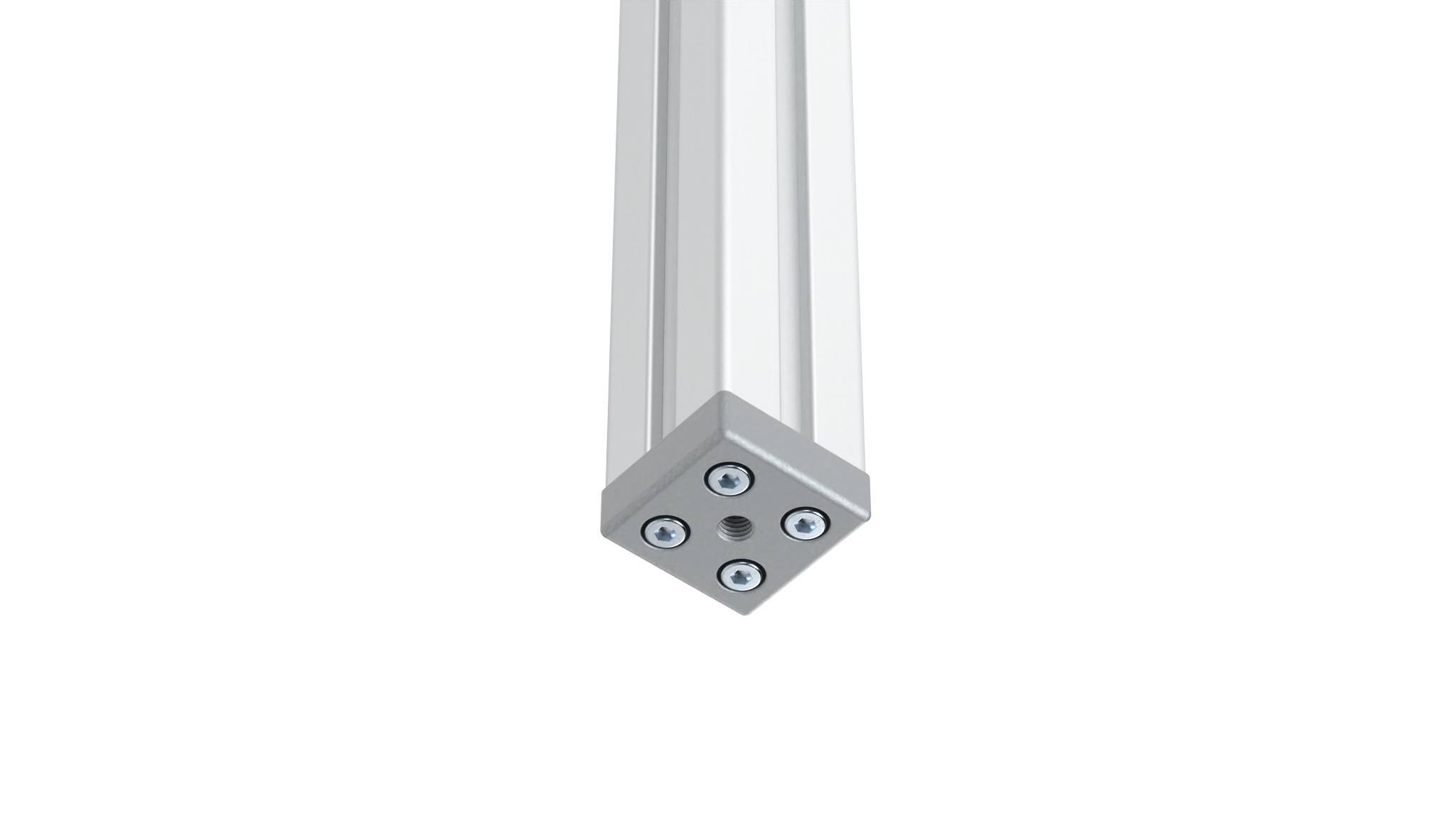

Transport and Base Plate ZN 40 x 40, Plain
Part #: 093T40400805R · 2 variants
To mount leveling feet, rollers, hooks or similar components; connects to the profile sideways
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 81 g
- ECLASS
- 23360290
- Category
- Transport and Base Plates
Versions
Select a version — the description and files below follow your selection.

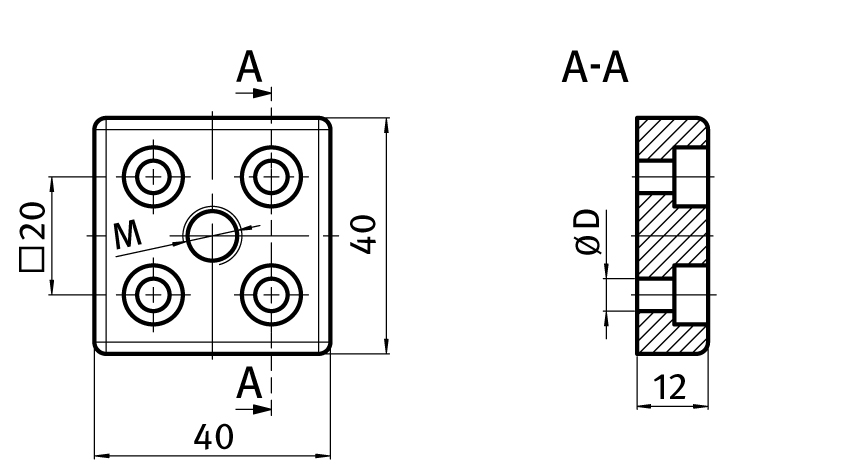

| Part # | M | ØD (mm) | Add 1 pc to enquiry |
|---|---|---|---|
| 093T40400805R✓ Selected | - | 5.5 (M5) | |
| 093T40401205R | M12 | 5.5 (M5) |
Description 093T40400805R
- Description
To mount leveling feet, rollers, hooks or similar components; connects to the profile sideways
- Material
Zinc die-cast
- Surface
Plain
- Tip
Powder coated Transport and Base Plate see 093T40400805S
Properties
| Product Feature | ESD |
|---|---|
| Profile Form | T-slot Profiles |
| Pack Quantity | 10 pieces |
| Model | Zinc die-cast |
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
Matching products
Referenced in the description — nuts, plates, caps, assembly sets.
