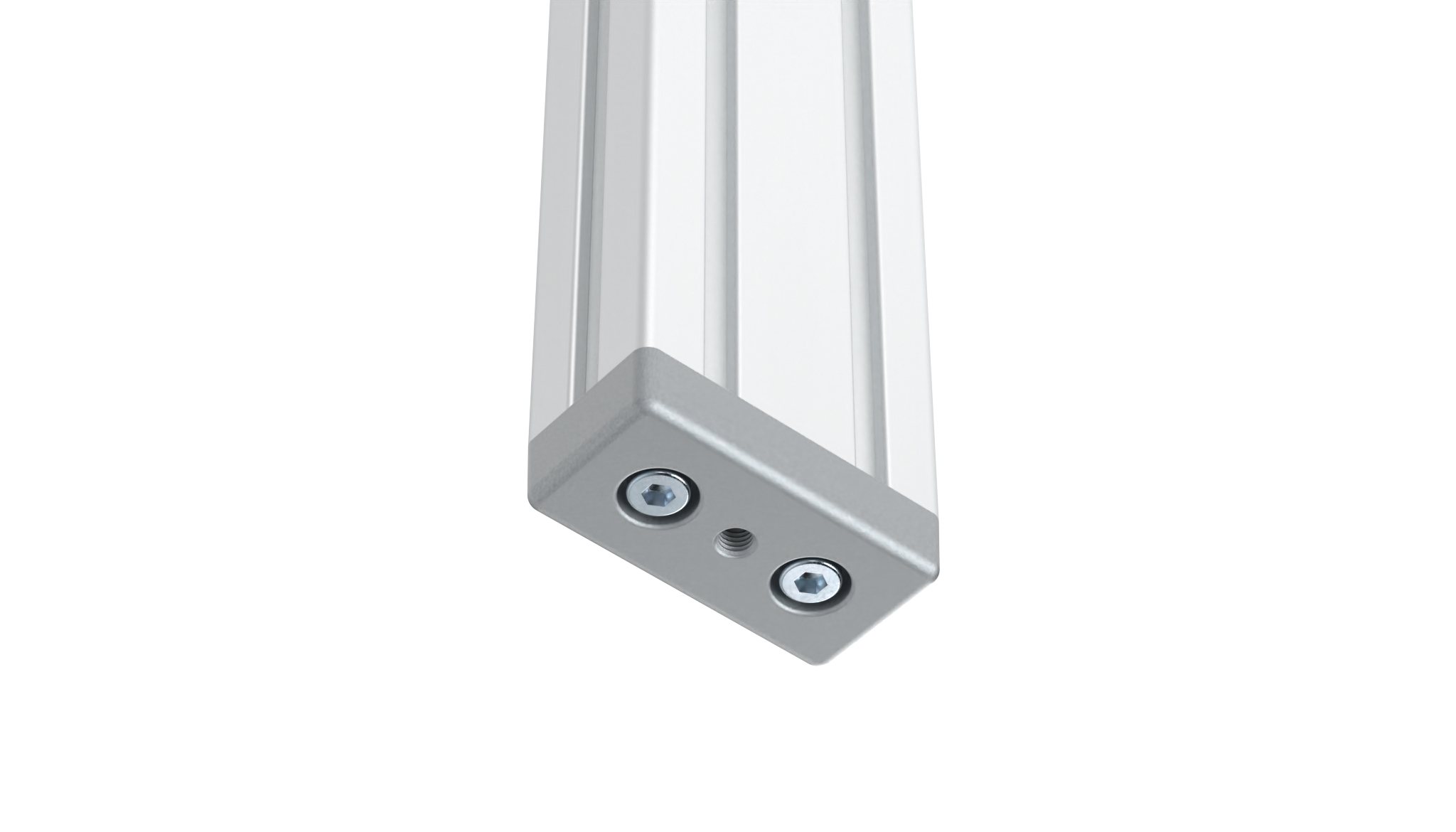

Transport and Base Plate ZN 40 x 80, Plain
Part #: 093T40800808R · 9 variants

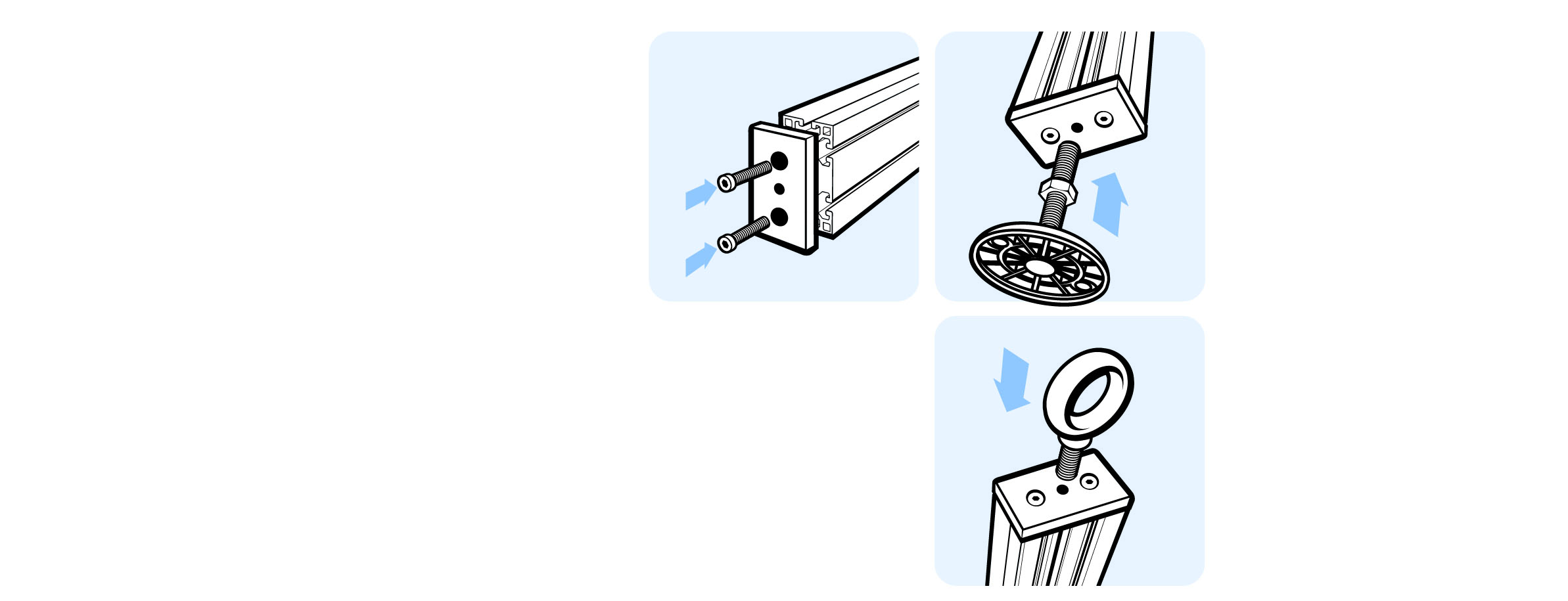

To mount leveling feet, rollers, hooks or similar components; connects to the profile sideways
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 213 g
- ECLASS
- 23360290
- Category
- Transport and Base Plates
Versions
Select a version — the description and files below follow your selection.
| Part # | M | ØD (mm) | Add 1 pc to enquiry |
|---|---|---|---|
| 093T40800808R✓ Selected | - | 9 (M8) | |
| 093T40800812R | - | 14.5 (M12) | |
| 093T40801008R | M10 | 9 (M8) | |
| 093T40801012R | M10 | 14.5 (M12) | |
| 093T40801208R | M12 | 9 (M8) | |
| 093T40801212R | M12 | 14.5 (M12) | |
| 093T40801408R | M14 | 9 (M8) | |
| 093T40801608R | M16 | 9 (M8) | |
| 093T40801612R | M16 | 14.5 (M12) |
Description 093T40800808R
- Description
To mount leveling feet, rollers, hooks or similar components; connects to the profile sideways
- Material
Zinc die-cast
- Surface
Plain
- Tip
Powder coated Transport and Base Plate see 093T40800808S
Properties
| Profile Type | Profile Type I |
|---|---|
| Product Feature | ESD |
| Profile Form | T-slot Profiles |
| Pack Quantity | 10 pieces |
| Model | Zinc die-cast |
Drawing
From the FATH catalogue (EC-EN, p. 104)
