Transport and Base Plate ZN 40 x 80, Powder Coated

Part #: 093T40800808A · 18 variants

To mount leveling feet, rollers, hooks or similar components; connects to the profile sideways

Quantity

Price, availability and delivery time — we send one quote for all products.

Question about this product?

Technical questions, custom versions or quantities — write or call us.

Versions

Select a version — the description and files below follow your selection.

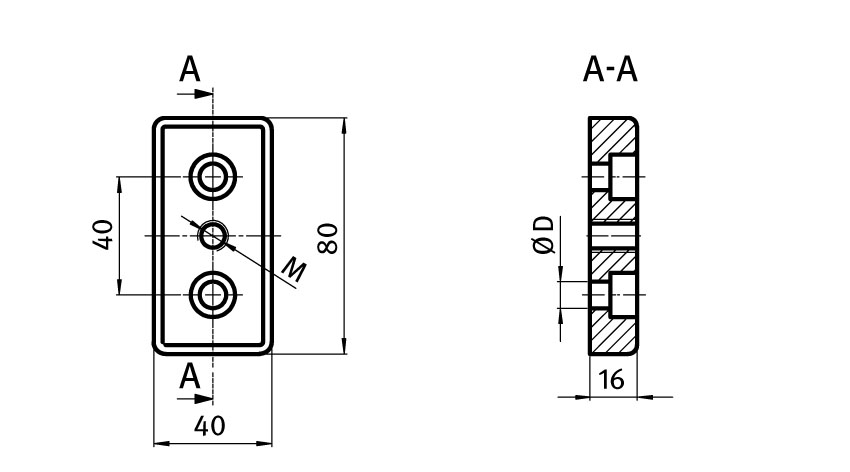

Part #	Fig.	Color	M	ØD (mm)
093T40800808A✓ Selected	②	Alu color	-	9 (M8)
093T40800808S	①	Black	-	9 (M8)
093T40800812A	②	Alu color	M8	14.5 (M12)
093T40800812S	①	Black	-	14.5 (M12)
093T40801008A	②	Alu color	M10	9 (M8)
093T40801008S	①	Black	M10	9 (M8)
093T40801012A	②	Alu color	M10	14.5 (M12)
093T40801012S	①	Black	M10	14.5 (M12)
093T40801208A	②	Alu color	M12	9 (M8)
093T40801208S	①	Black	M12	9 (M8)
093T40801212S	①	Black	M12	14.5 (M12)
093T40801408S	①	Black	M14	9 (M8)
093T40801412A	②	Alu color	M14	14.5 (M12)
093T40801608A	②	Alu color	M16	9 (M8)
093T40801608S	①	Black	M16	9 (M8)
093T40801612A	②	Alu color	M16	14.5 (M12)
093T40801612S	①	Black	M16	14.5 (M12)
093T40802008S	①	Black	M20	9 (M8)

Color: Black, alu colour
Description: To mount leveling feet, rollers, hooks or similar components; connects to the profile sideways
Material: Zinc die-cast
Specials: Other surfaces, other colors on request
Surface: Powder coated
Tip: Plain Transport and Base Plate see 093T40800808R

From the FATH catalogue (EC-EN, p. 105)
