FATH

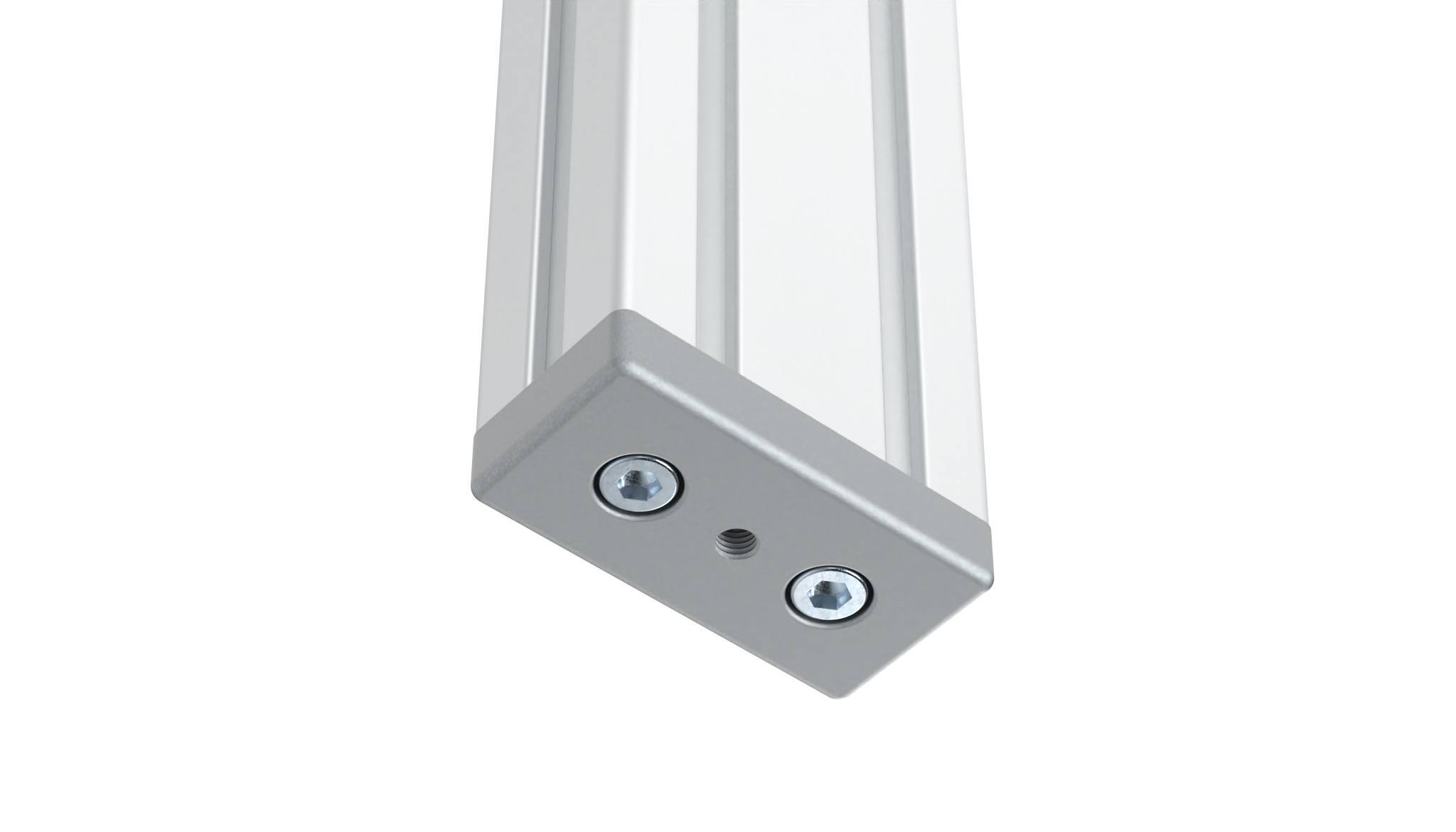

Transport and Base Plate ZN 50 x 100, Plain
Part #: 093T501001010R · 3 variants
To mount leveling feet, rollers, hooks or similar components; connects to the profile sideways
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 310 g
- ECLASS
- 23360290
- Category
- Transport and Base Plates
Versions
Select a version — the description and files below follow your selection.
| Part # | M | ØD (mm) | Add 1 pc to enquiry |
|---|---|---|---|
| 093T501001010R✓ Selected | M10 | 11 (M10) | |
| 093T501001610R | M16 | 11 (M10) | |
| 093T501001612R | M16 | 14.5 (M12) |
Description 093T501001010R
- Description
To mount leveling feet, rollers, hooks or similar components; connects to the profile sideways
- Material
Zinc die-cast
- Surface
Plain
- Tip
Powder coated Transport and Base Plate see 093T501001010S
Properties
| Profile Type | Profile Type I |
|---|---|
| Product Feature | ESD |
| Profile Form | T-slot Profiles |
| Pack Quantity | 10 pieces |
| Model | Zinc die-cast |

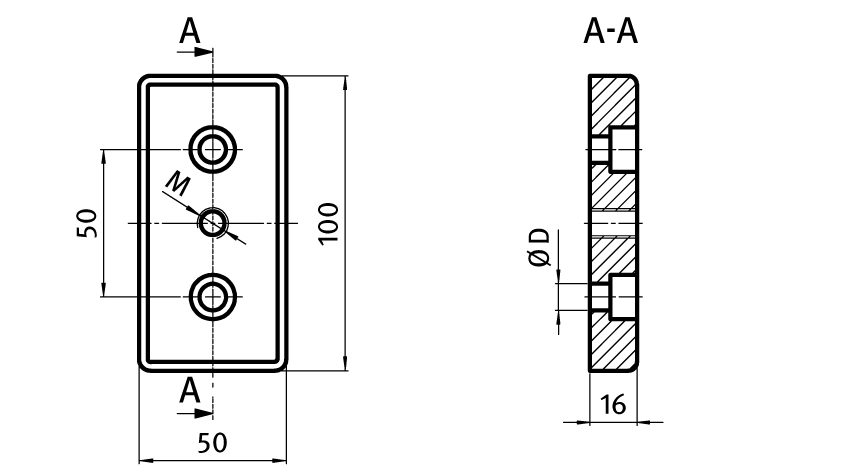

Drawing
From the FATH catalogue (EC-EN, p. 114)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
