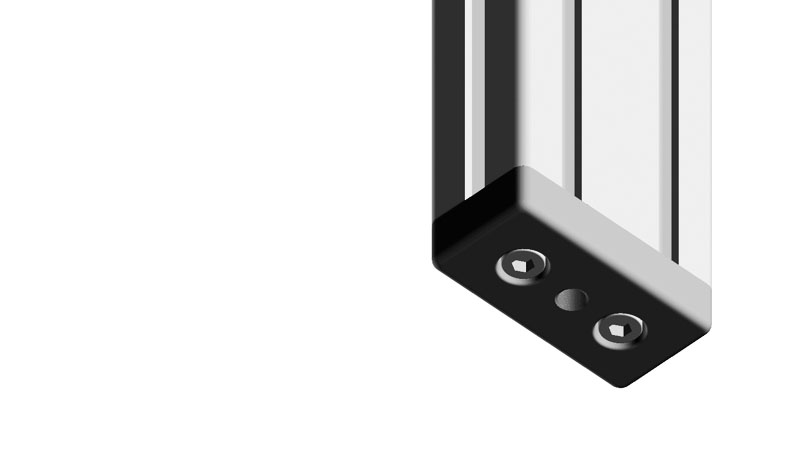

Transport and Base Plate ZN 50 x 100, Powder Coated

Part #: 093T501001010A · 15 variants

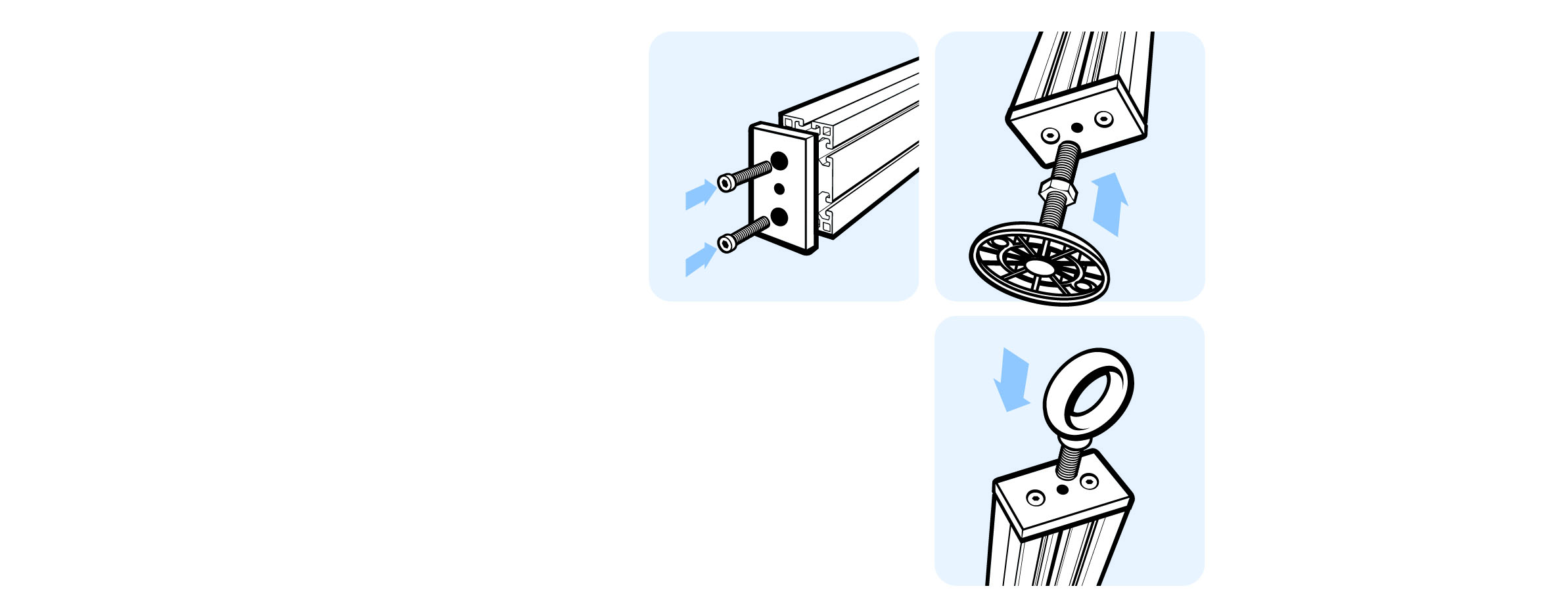

To mount leveling feet, rollers, hooks or similar components; connects to the profile sideways

Quantity

Price, availability and delivery time — we send one quote for all products.

Question about this product?

Technical questions, custom versions or quantities — write or call us.

Versions

Select a version — the description and files below follow your selection.

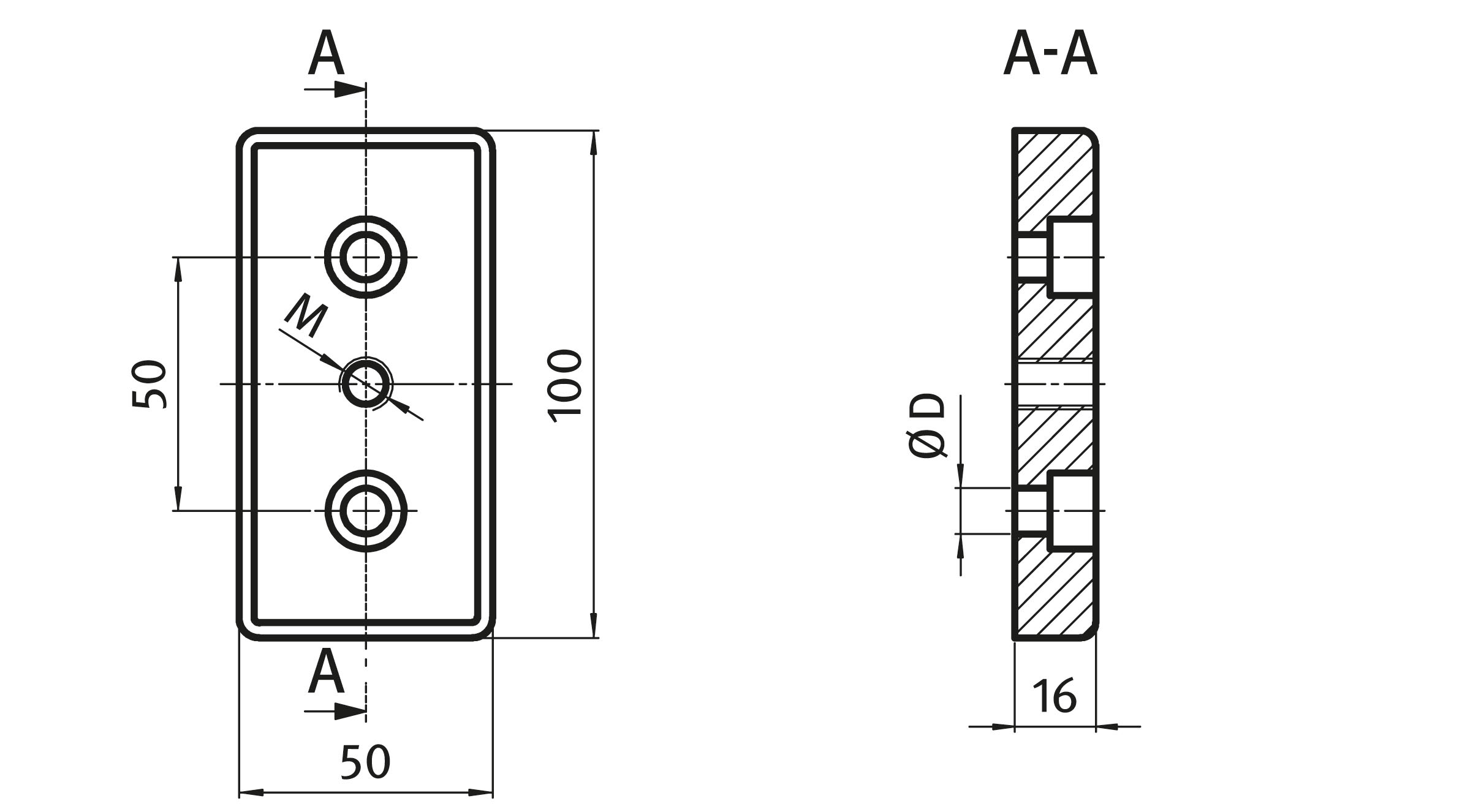

Part #	Fig.	Color	M	ØD (mm)
093T501001010A✓ Selected	②	Alu color	M10	11 (M10)
093T501001010S	①	Black	M10	11 (M10)
093T501001012S	①	Black	M10	14.5 (M12)
093T501001210A	②	Alu color	M12	11 (M10)
093T501001210S	①	Black	M12	11 (M10)
093T501001212S	①	Black	M12	14.5 (M12)
093T501001410A	②	Alu color	M14	11 (M10)
093T501001410S	①	Black	M14	11 (M10)
093T501001412S	①	Black	M14	14.5 (M12)
093T501001610A	②	Alu color	M16	11 (M10)
093T501001610S	①	Black	M16	11 (M10)
093T501001612S	①	Black	M16	14.5 (M12)
093T501002010A	②	Alu color	M20	11 (M10)
093T501002010S	①	Black	M20	11 (M10)
093T501002012S	①	Black	M20	14.5 (M12)

Color: Black, alu colour
Description: To mount leveling feet, rollers, hooks or similar components; connects to the profile sideways
Material: Zinc die-cast
Specials: Other surfaces, other colors on request
Surface: Powder coated
Tip: Plain Transport and Base Plate see 093T501001010R

From the FATH catalogue (EC-EN, p. 115)
