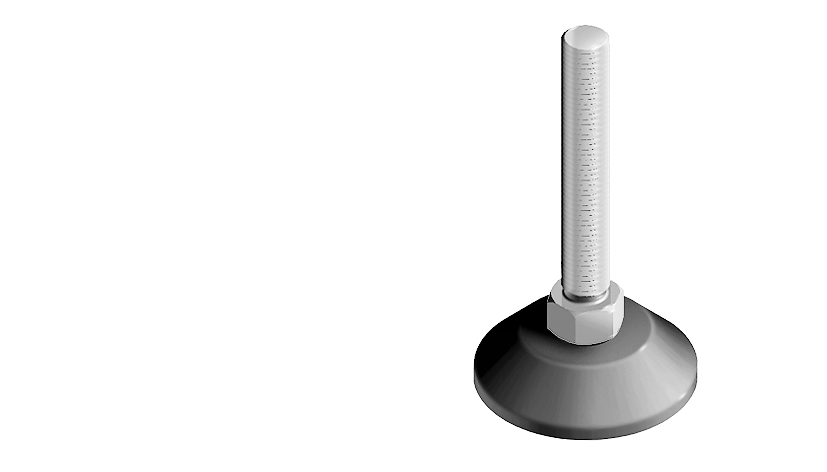

Trapezoid Base for Pivot Feet, Black
Part #: 098AI060ZS · 4 variants
A leveling foot for strong positioning on slightly uneven floors
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 1 piece
- Weight
- 115.6 g
- ECLASS
- 23010704
- Category
- Bases, Pivot Feet
Versions
Select a version — the description and files below follow your selection.
| Part # | Base | Fmax (N) | D (mm) | F (mm) | Version | H (mm) | Pack Quantity | Add 1 pc to enquiry |
|---|---|---|---|---|---|---|---|---|
| 098AI060ZS✓ Selected | 60 | 24500 | 59 | 31.0 | without anti-slip plate | 18 | 1 piece | |
| 098AI060ZSG | 60 | 24500 | 59 | 31.0 | with anti-slip plate | 18 | 10 pieces | |
| 098AI080ZS | 80 | 29400 | 76 | 33.0 | without anti-slip plate | 20 | 1 piece | |
| 098AI080ZSG | 80 | 29400 | 76 | 33.0 | with anti-slip plate | 20 | 10 pieces |
Description 098AI060ZS
- Color
Black
- Description
A leveling foot for strong positioning on slightly uneven floors
- Material
Zinc die-cast
- Specials
Other sizes, glued anti-slip plate on request;
As factory assembled leveling foot on request
- Surface
Powder coated
- Tip
Compatible Threaded Rod see 098AM12066M,
Compatible Nut see 4DIN439BM5M et sq.,
Compatible Anti-Slip Plate 098AG050
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Product Feature | Fractional |
| Application Area | Machinery & Plant Engineering |
| Pack Quantity | 1 piece |
| Model | Zinc die-cast |

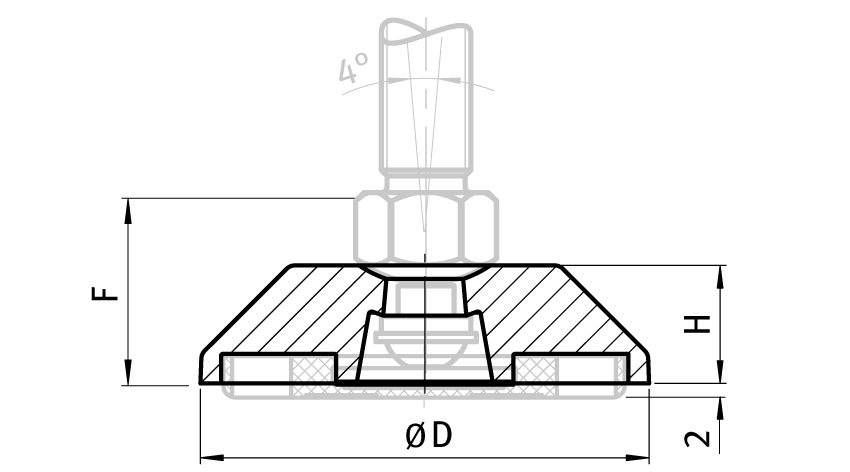

Drawing
From the FATH catalogue (EC-EN, p. 57)
