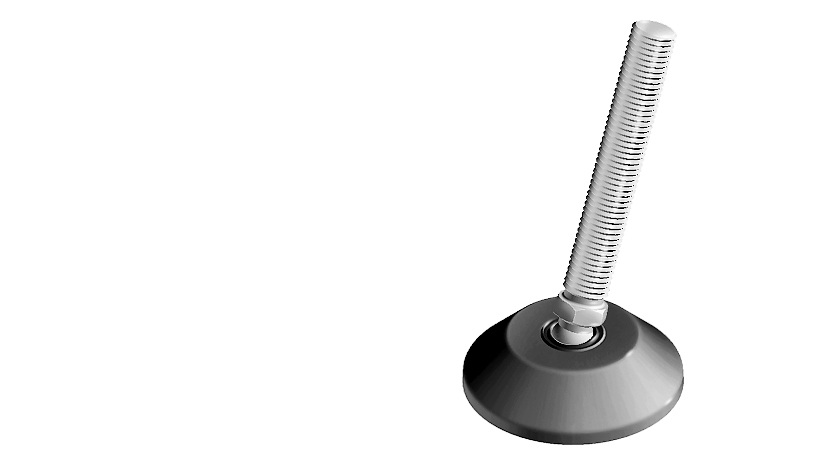

Trapezoid Base for Swivel Feet Ball Joint 15

Part #: 098DI060ZS · 4 variants

A swiveling leveling foot for strong positioning on uneven floors

Quantity

Price, availability and delivery time — we send one quote for all products.

Question about this product?

Technical questions, custom versions or quantities — write or call us.

Versions

Select a version — the description and files below follow your selection.

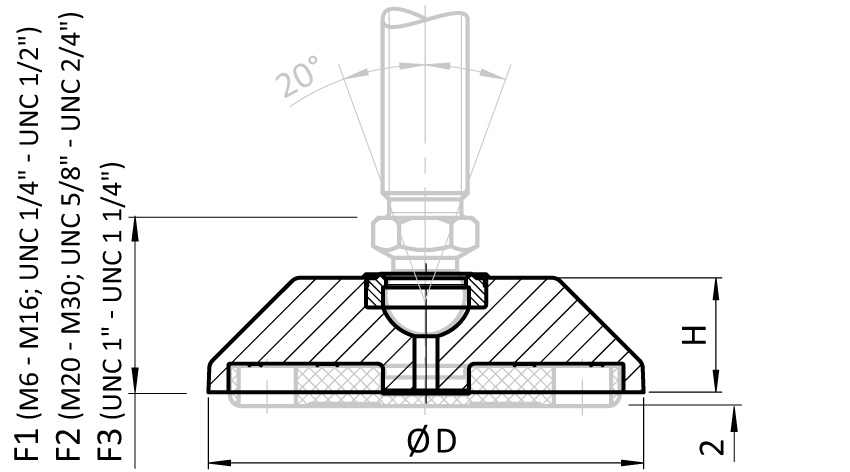

Part #	Base	Fmax (N)	D (mm)	Version	H (mm)	F1 (mm)	F2 (mm)	F3 (mm)	Pack Quantity
098DI060ZS✓ Selected	60	24500	59	without anti-slip plate	18	29.5	32.5	33.5	1 piece
098DI060ZSG	60	24500	59	with anti-slip plate	18	29.5	32.5	33.5	10 pieces
098DI080ZS	80	29400	76	without anti-slip plate	20	29.5	32.5	33.5	1 piece
098DI080ZSG	80	29400	76	with anti-slip plate	20	29.5	32.5	33.5	10 pieces

Color

Black

Description

A swiveling leveling foot for strong positioning on uneven floors

Material

Zinc die-cast

Specials

Other surfaces, other sizes, other colors, screwed or glued anti-slip plate on request;

As factory assembled leveling foot on request

Surface

Powder coated

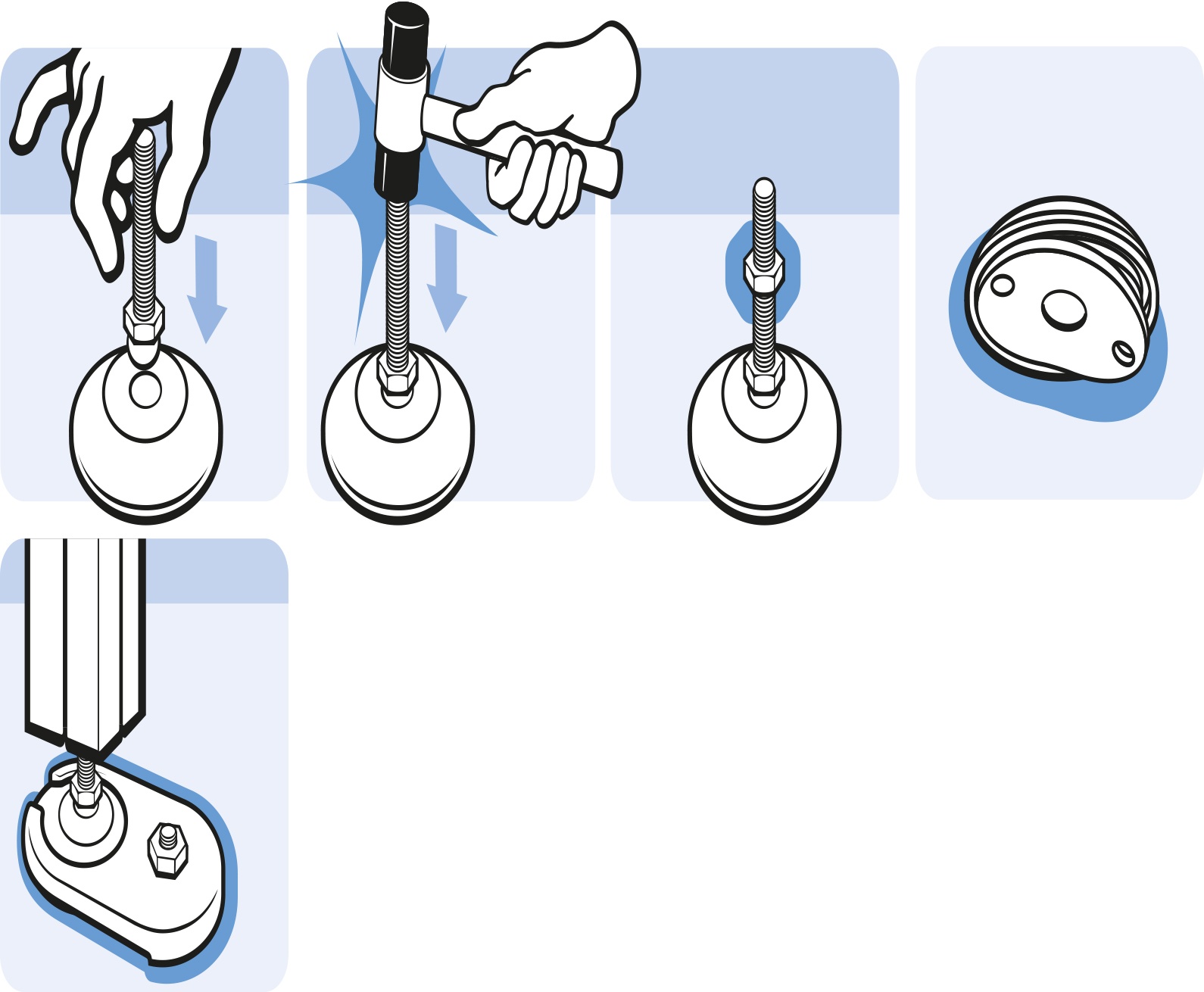

Tip

Compatible Threaded Rod see 098DM08025M et sq.,

Compatible Nut see 4DIN439BM5M et sq.,

Compatible Anti-slip Plate see 098DG030 f.,

Compatible Floor Mounting see 098BI060ZS

Profile Type	Profile Type B, Profile Type I
Product Feature	Fractional
Application Area	Machinery & Plant Engineering
Pack Quantity	1 piece
Model	Zinc die-cast

From the FATH catalogue (EC-EN, p. 33)
