Trapezoid Pivot Foot, ZN / ST

Part #: 9AI060ZS12066M · 9 variants

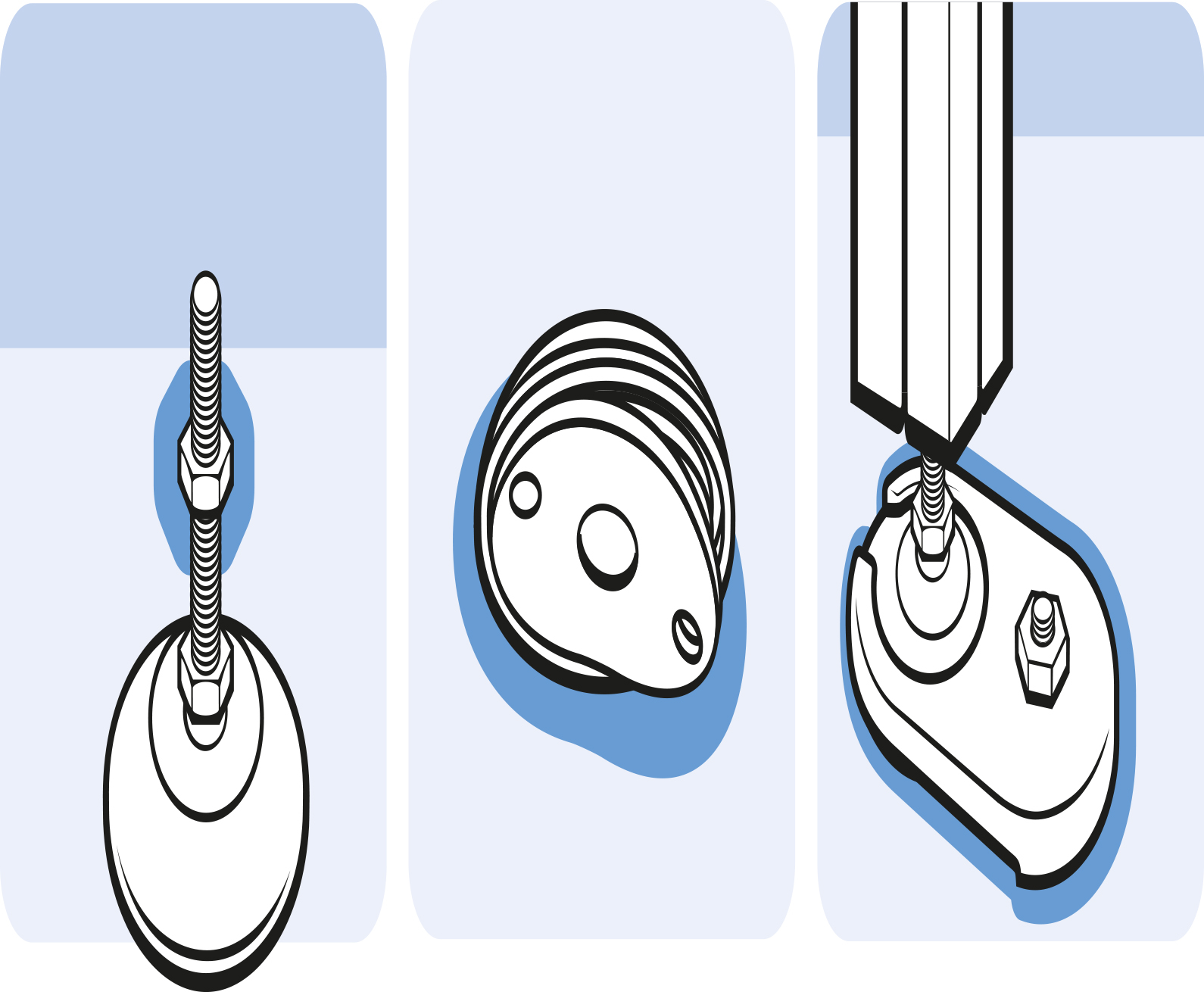

A leveling foot for strong positioning on slightly uneven floors

Quantity

Price, availability and delivery time — we send one quote for all products.

Question about this product?

Technical questions, custom versions or quantities — write or call us.

Versions

Select a version — the description and files below follow your selection.

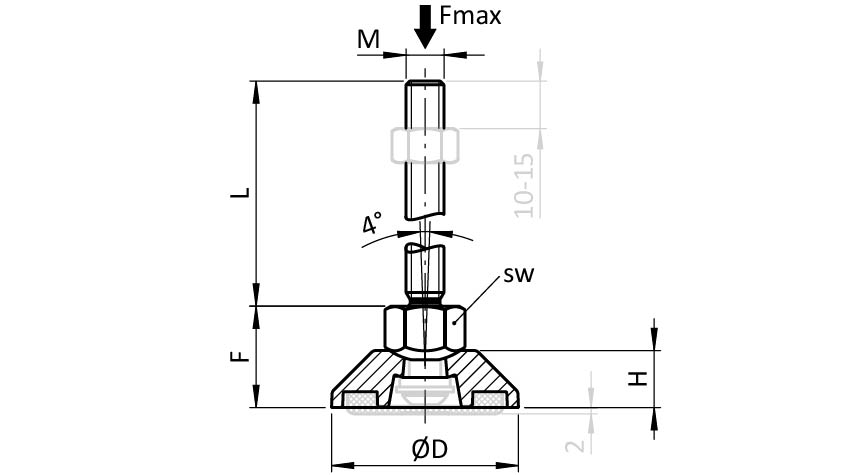

Part #	Base	Fmax (N)	SW (mm)	D (mm)	F (mm)	M x L (mm)	Version	H (mm)
9AI060ZS12066M✓ Selected	60	7550	22	59	31	M12 x 66	without anti-slip plate	18
9AI060ZS12100M	60	7550	22	59	31	M12 x 100	without anti-slip plate	18
9AI080ZS12066M	80	33	22	76	33	M12 x 66	without anti-slip plate	20
9AI080ZS12125M	80	7550	22	76	33	M12 x 125	without anti-slip plate	20
9AI080ZS12150M	80	7550	22	76	33	M12 x 150	without anti-slip plate	33
9AI080ZS16066M	80	14200	22	76	33	M16 x 66	without anti-slip plate	20
9AI080ZS16100M	80	14200	22	76	33	M16 x 100	without anti-slip plate	20
9AI080ZS16125M	80	14200	22	76	33	M16 x 125	without anti-slip plate	20
9AI080ZS20100M	80	33	22	76	33	M20 x 100	without anti-slip plate	20

Color

Base: Black

Description

A leveling foot for strong positioning on slightly uneven floors

Material

Base: Zinc die-cast

Threaded rod: Steel

Specials

ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request

Stainless steel, other lengths and other sizes on request

Surface

Base: Powder coated

Threaded rod: Zinc plated

Tip

Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq.,

Compatible Anti-Slip Plate see 098AG050 et sq.

Application Area	Machinery & Plant Engineering
Pack Quantity	1 piece
Model	Zinc die-cast / steel, without bolt-down holes
Screw Joint	Swiveling range ±4°
