FATH

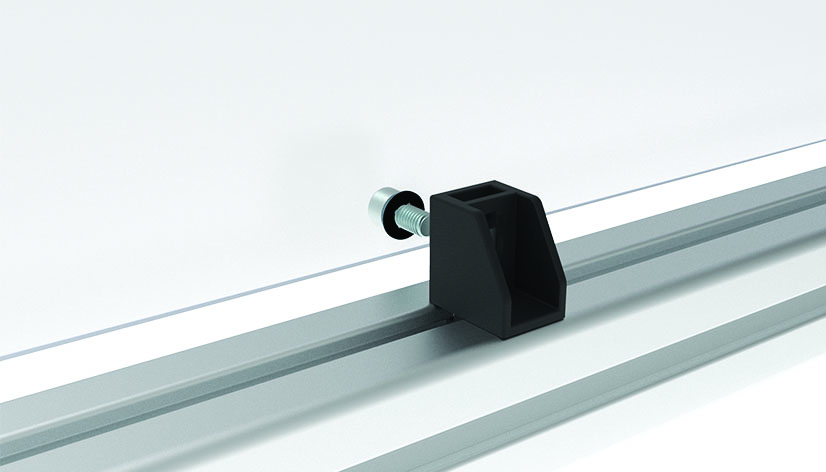

Uni Block 25 CS, Black
Part #: 094003CSM6 · 6 variants
To attach panels safely to aluminum profiles; with screw reatiner to comply with Machinery Directive 2006/42/EC
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 25 pieces
- Weight
- 10 g
- ECLASS
- 23360492
- Category
- T-hammer, Uni Blocks
Versions
Select a version — the description and files below follow your selection.
| Part # | Profile | M | Slot N (mm) | A2 (Profile) (mm) | A1 (mm) | Add 1 pc to enquiry |
|---|---|---|---|---|---|---|
| 094003CSM6✓ Selected | I | M6 | 8 | 4.35 (4.5) | 7.9 | |
| 094004CSM6 | B | M6 | 10 | 5.6 (6.0) | 9.5 | |
| 094005CSM6 | B | M6 | 10 | 6.0 (6.0) | 14.0 | |
| 094008CSM6 | B | M6 | 10 | 5.7 (6.0) | 8.5 | |
| 094020CSM6 | I | M6 | 8 | 4.4 (4.5) | 12.0 | |
| 094080CSM6 | I | M6 | 8 | 4.6 (4.5) | 14.0 |
Description 094003CSM6
- Color
Black
- Description
To attach panels safely to aluminum profiles; with screw reatiner to comply with Machinery Directive 2006/42/EC
- Material
Block: Plastic PA, glass fiber reinforced
Nut: Zinc plated steel
- Specials
Customized hammer, other colors on request
- Tip
Compatible Spacer see 094102CS
Properties
| Profile Type | Profile Type I |
|---|---|
| Slot Size | Slot 8 |
| Pack Quantity | 25 pieces |
| Model | With screw retainer |

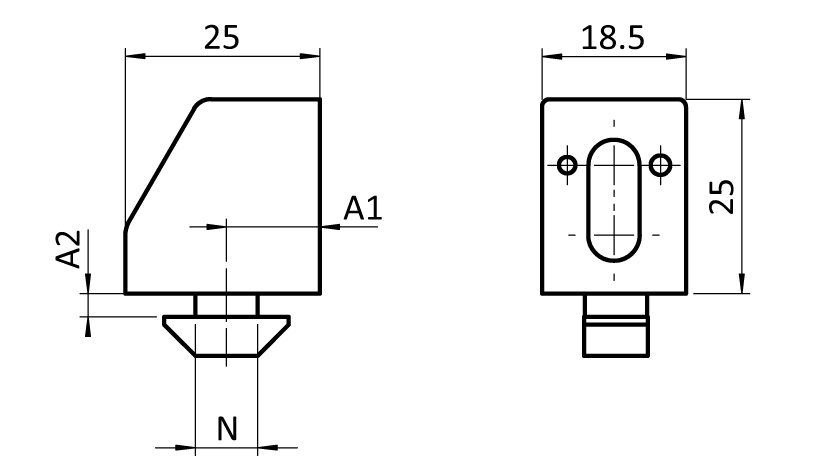

Drawing
From the FATH catalogue (EC-EN, p. 915)
