FATH
Uni Block 25 EH
Part #: 094010M4 · 4 variants
To join panels and aluminum profiles of various dimensions
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 100 pieces
- Weight
- 10 g
- ECLASS
- 23360492
- Category
- Mounting Hole, Uni Blocks
Versions
Select a version — the description and files below follow your selection.
| Part # | M | Add 1 pc to enquiry |
|---|---|---|
| 094010M4✓ Selected | M4 | |
| 094010M5 | M5 | |
| 094010M6 | M6 | |
| 094010U1/4 | UNC 1/4-20 |
Description 094010M4
- Color
Black
- Description
To join panels and aluminum profiles of various dimensions
- Material
Block: Plastic PA, glass fiber reinforced
Nut: Zinc plated steel
- Specials
ESD electrostatical discharging, other sizes, other colors on request
- Tip
Compatible Spacer see 094102CS
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Application Area | Machinery & Plant Engineering |
| Pack Quantity | 100 pieces |
| Model | Plastic PA |

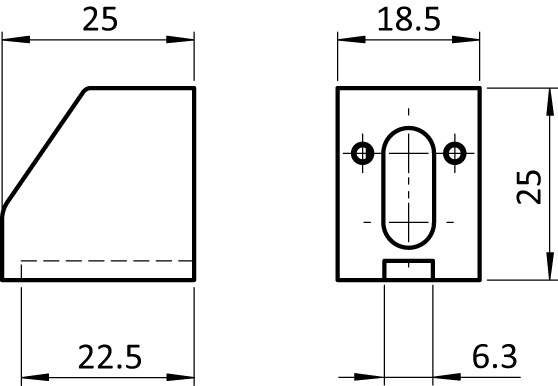

Drawing
From the FATH catalogue (EC-EN, p. 920)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
