FATH

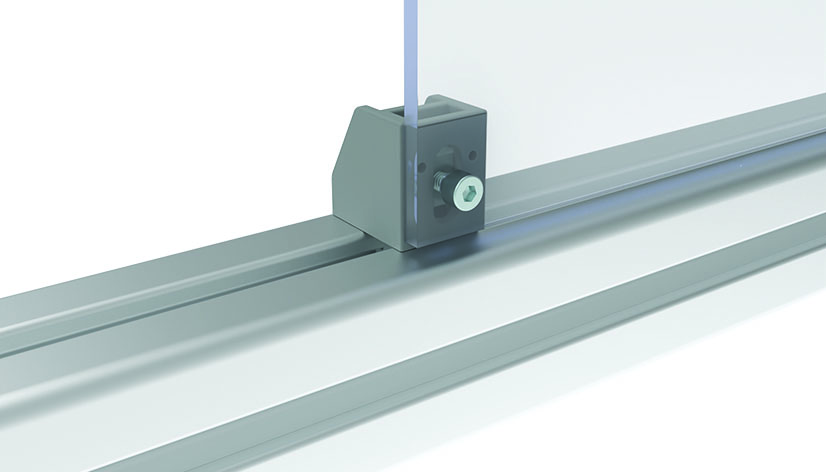

Uni Block 25, Gray
Part #: 094003M4S01 · 18 variants
To attach panels easily to aluminum profiles
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 100 pieces
- Weight
- 9.8 g
- ECLASS
- 23360492
- Category
- T-hammer, Uni Blocks
Versions
Select a version — the description and files below follow your selection.
| Part # | Profile | Color | M | Slot N (mm) | A2 (Profile) (mm) | A1 (mm) | Add 1 pc to enquiry |
|---|---|---|---|---|---|---|---|
| 094003M4S01✓ Selected | I | Gray ≈ RAL 7042 | M4 | 8 | 4.35 (4.5) | 8.0 | |
| 094003M5S01 | I | Gray ≈ RAL 7042 | M5 | 8 | 4.35 (4.5) | 8.0 | |
| 094003M6S01 | I | Gray ≈ RAL 7042 | M6 | 8 | 4.35 (4.5) | 8.0 | |
| 094004M4S01 | B | Gray ≈ RAL 7004 | M4 | 10 | 5.6 (6.0) | 9.5 | |
| 094004M5S01 | B | Gray ≈ RAL 7004 | M5 | 10 | 5.6 (6.0) | 9.5 | |
| 094004M6S02 | B | Gray ≈ RAL 7004 | M6 | 10 | 5.6 (6.0) | 9.5 | |
| 094005M4S01 | B | Gray ≈ RAL 7004 | M4 | 10 | 6.0 (6.0) | 14.0 | |
| 094005M5S01 | B | Gray ≈ RAL 7004 | M5 | 10 | 6.0 (6.0) | 14.0 | |
| 094005M6S06 | B | Gray ≈ RAL 7004 | M6 | 10 | 6.0 (6.0) | 14.0 | |
| 094008M4S01 | B | Gray ≈ RAL 7004 | M4 | 10 | 5.7 (6.0) | 8.5 | |
| 094008M5S01 | B | Gray ≈ RAL 7004 | M5 | 10 | 5.7 (6.0) | 8.5 | |
| 094008M6S03 | B | Gray ≈ RAL 7004 | M6 | 10 | 5.7 (6.0) | 8.5 | |
| 094020M4S01 | I | Gray ≈ RAL 7042 | M4 | 8 | 4.4 (4.5) | 12.0 | |
| 094020M5S01 | I | Gray ≈ RAL 7042 | M5 | 8 | 4.4 (4.5) | 12.0 | |
| 094020M6S04 | I | Gray ≈ RAL 7042 | M6 | 8 | 4.4 (4.5) | 12.0 | |
| 094080M4S01 | I | Gray ≈ RAL 7042 | M4 | 8 | 4.6 (4.5) | 14.0 | |
| 094080M5S01 | I | Gray ≈ RAL 7042 | M5 | 8 | 4.6 (4.5) | 14.0 | |
| 094080M6S01 | I | Gray ≈ RAL 7042 | M6 | 8 | 4.6 (4.5) | 14.0 |
Description 094003M4S01
- Color
Gray
- Description
To attach panels easily to aluminum profiles
- Material
Block: Plastic PA, glass fiber reinforced
Nut: Zinc plated steel
- Specials
Customized hammer, other colors on request
- Tip
Compatible Spacer see 094102S10
Properties
| Profile Type | Profile Type I |
|---|---|
| Slot Size | Slot 8 |
| Pack Quantity | 100 pieces |
| Model | Plastic PA, Slot 8, 10 |

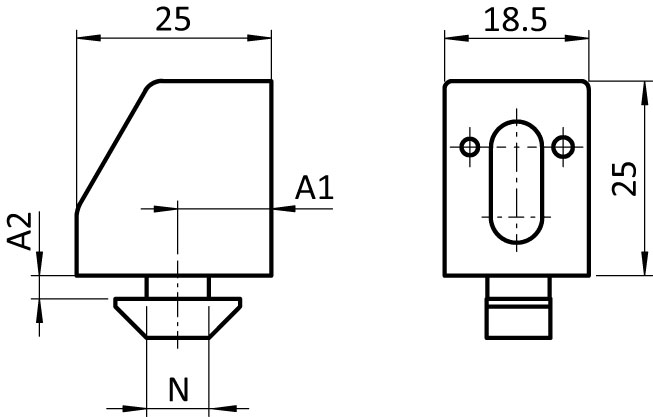

Drawing
From the FATH catalogue (EC-EN, p. 914)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
Matching products
Referenced in the description — nuts, plates, caps, assembly sets.
