FATH

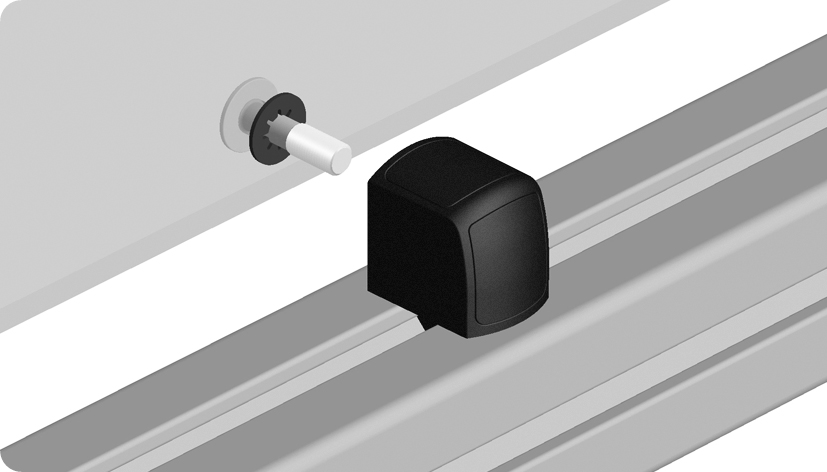

Uni Block 26 CS (Set)
Part #: 094605CSS02 · 2 variants
To attach panels with a thickness of 2 - 8 mm safely to aluminum profiles; with screw retainer to comply withMachinery Directive 2006/42/EC
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 25 pieces
- Weight
- 21 g
- ECLASS
- 23360492
- Category
- T-hammer, Uni Blocks
Versions
Select a version — the description and files below follow your selection.
| Part # | Profile | Slot N (mm) | A2 (Profile) (mm) | A1 (mm) | Add 1 pc to enquiry |
|---|---|---|---|---|---|
| 094605CSS02✓ Selected | B | 10 | 6.3 (6.0) | 14.0 | |
| 094620CSS02 | I | 8 | 4.4 (4.5) | 12.0 |
Description 094605CSS02
- Color
Black
- Description
To attach panels with a thickness of 2 - 8 mm safely to aluminum profiles; with screw retainer to comply withMachinery Directive 2006/42/EC
- Material
Block: Plastic PA, glass fiber reinforced
Nut: Zinc plated steel
- Specials
Customized hammer, other colors on request
Properties
| Profile Type | Profile Type B |
|---|---|
| Slot Size | Slot 10 |
| Pack Quantity | 25 pieces |
| Model | With screw retainer |

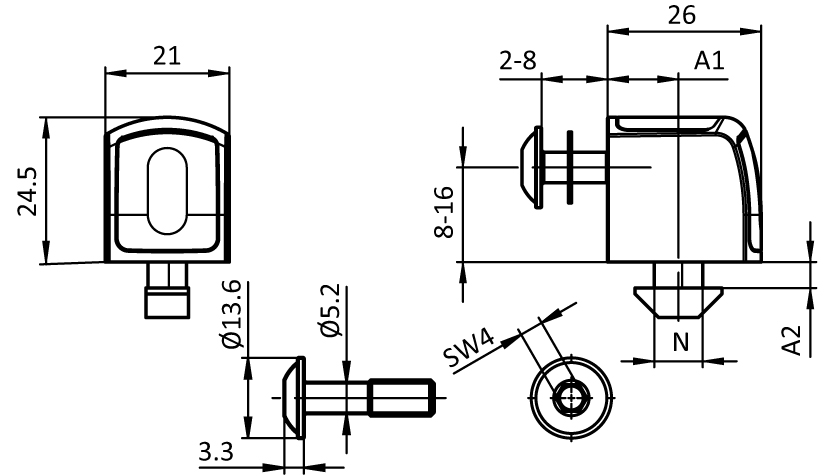

Drawing
From the FATH catalogue (EC-EN, p. 918)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
