FATH
Universal Connector B
Part #: 099A1045 · 2 variants
To connect two aluminum profiles
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 100 pieces
- Weight
- 18.6 g
- ECLASS
- 23360290
- Category
- Universal Connectors
Versions
Select a version — the description and files below follow your selection.
| Part # | D (mm) | H (mm) | Profile | A (mm) | Assembly Set | Slot N (mm) | for Screw | Pack Quantity | Add 1 pc to enquiry |
|---|---|---|---|---|---|---|---|---|---|
| 099A1045✓ Selected | 19.7 | 16.0 | - | 13.8 | - | 10 | M8 | 100 pieces | |
| 099A1045S03 | 19.7 | - | B | - | incl. assembly set | - | - | 10 pieces |

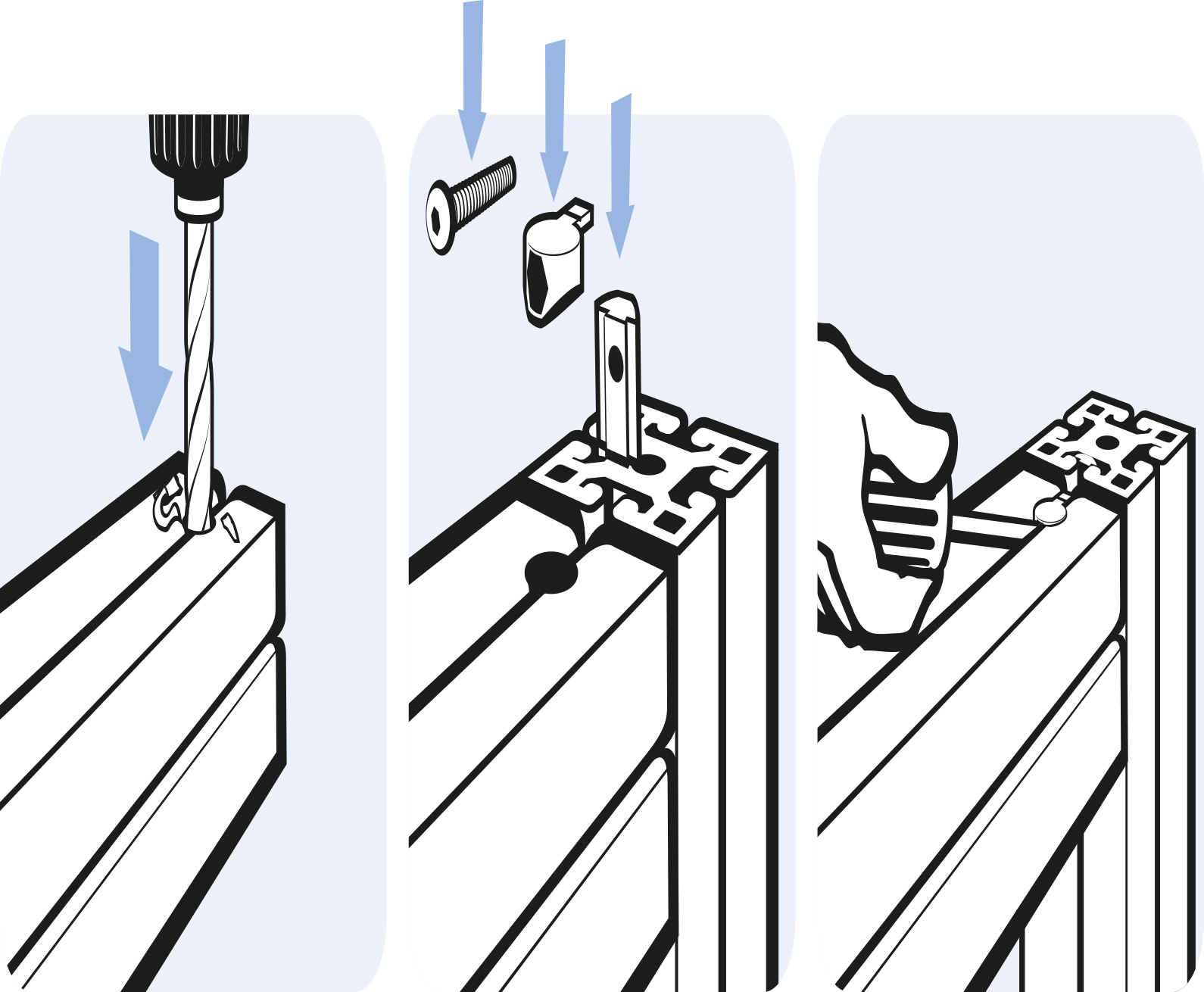

Description 099A1045
- Assembly Set
1 screw DIN EN ISO 4762 (DIN 912) -M8 x 30, 1
T-slot nut, slot 10, with spring leaf
- Description
To connect two aluminum profiles
- Material
Universal connector: Zinc die-cast
Assembly set: Steel
- Surface
Universal connector: Plain
Assembly set: Zinc plated
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Slot Size | Slot 10 |
| Pack Quantity | 100 pieces |
| Model | Zinc die-cast |

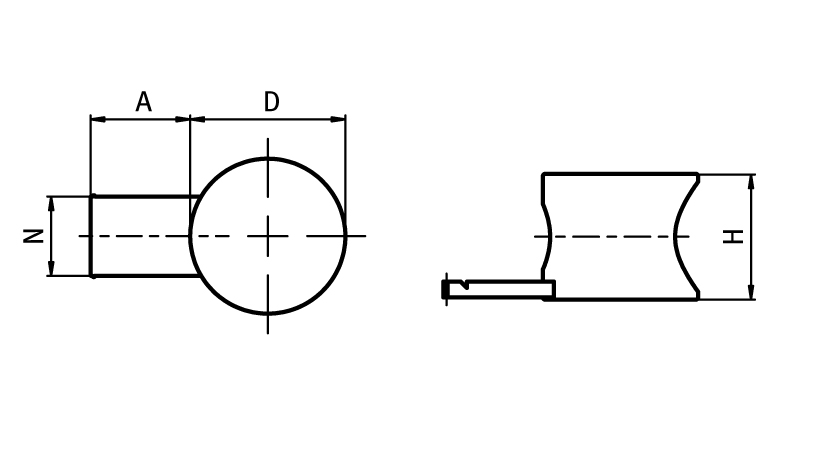

Drawing
From the FATH catalogue (EC-EN, p. 510)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
