Universal Hook-and-loop Block
Part #: 093815M45S01
To fix cables to aluminum profiles; to be mounted with a hammer nut
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 8.6 g
- ECLASS
- 27140701
- Category
- Mounting Hole, Cable Fixation Blocks · Cable Fixations
Description 093815M45S01
- Color
Cable binding block: Black
Hook-and-loop strap: Black
- Description
To fix cables to aluminum profiles; to be mounted with a hammer nut
- Fastening
From the front, using M4 or M5 countersunk screws
- Material
Cable binding block: Plastic PA, glass fiber reinforced
Hook-and-loop strap: Plastic PP (UL94-V2)
- Tip
Compatible Hammer Nuts see 096H0610 et seq.
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Application Area | Industrial Work Stations, Machinery & Plant Engineering |
| Pack Quantity | 10 pieces |
| Model | Plastic PA, slot 5-12 |

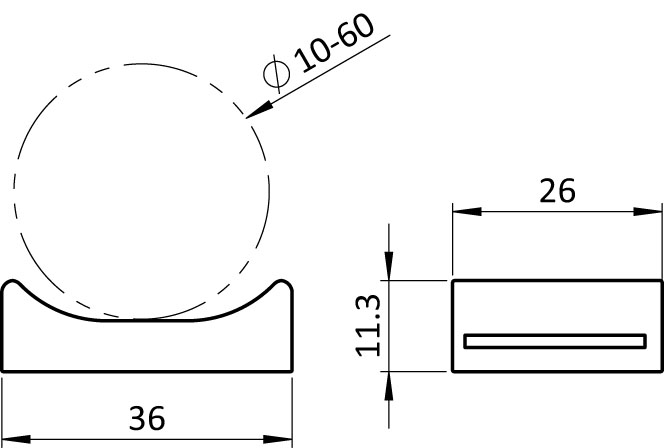

Drawing
From the FATH catalogue (EC-EN, p. 1017)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
