FATH

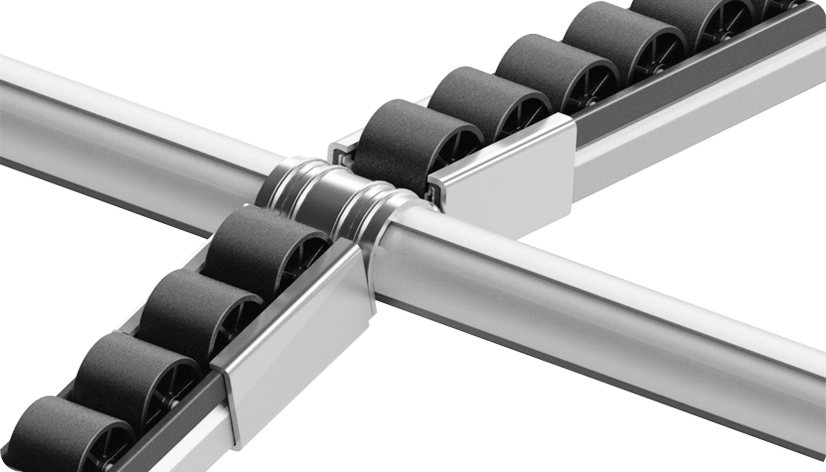

Variable Holding Bracket XST D28
Part #: 062MYFD28M · 2 variants
Transition between roller tracks with varying inclination, to mount roller tracks XST and guiding rails XST central, at different angles, to tubular frame profiles with Ø 28 mm outer diameter, preventing inserts from slipping out
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 103 g
- ECLASS
- 36120492
- Category
- Brackets D28 for Roller Tracks
Versions
Select a version — the description and files below follow your selection.
| Part # | Version | Fig. | Add 1 pc to enquiry |
|---|---|---|---|
| 062MYFD28M✓ Selected | Typ F | ② | |
| 062MYMD28M | Typ M | ① |
Description 062MYFD28M
- Description
Transition between roller tracks with varying inclination, to mount roller tracks XST and guiding rails XST central, at different angles, to tubular frame profiles with Ø 28 mm outer diameter, preventing inserts from slipping out
- Fastening
With 3 or 4 self-drilling screws DIN EN ISO 15481 (DIN 7504) - 3.9 x 16
- Material
Steel
- Specials
Other surfaces, other colors on request
- Surface
Zinc plated
Properties
| Profile Type | Profile Type B |
|---|---|
| Application Area | Industrial Work Stations, Intralogistics |
| Pack Quantity | 10 pieces |
| Model | For roller tracks XST |

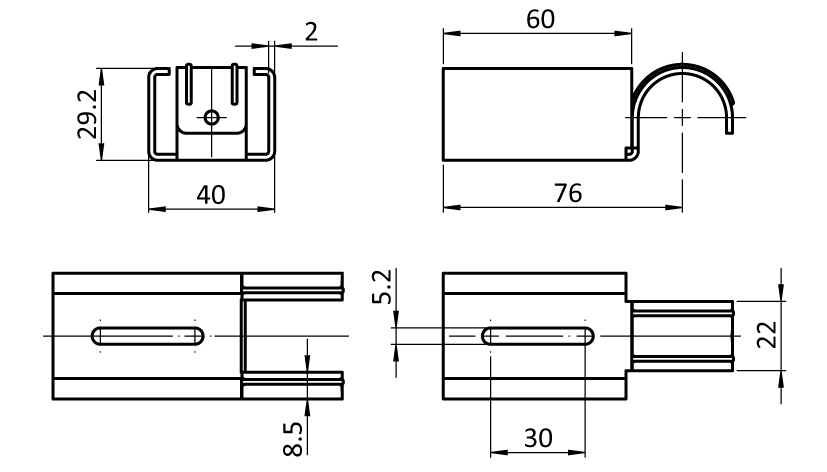

Drawing
From the FATH catalogue (EC-EN, p. 1069)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
