FATH
Vario Block AL D28 (Set)
Part #: 094AD28
To attach panels firmly to tubular frame profiles with Ø 28 mm outer diameter, ESD electrostatical discharging
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 63.5 g
- ECLASS
- 23360492
- Category
- Panel Fixation Blocks D28
Description 094AD28
- Description
To attach panels firmly to tubular frame profiles with Ø 28 mm outer diameter, ESD electrostatical discharging
- Material
Aluminum
- Set
1 vario block AL - 2-part,
1 screw DIN EN ISO 4762 (DIN 912) - M6 x 30,
2 screws DIN EN ISO 4762 (DIN 912) - M6 x 22,
2 square nuts DIN 557 - M6
- Specials
Other surfaces, other colors on request
- Surface
Plain
- Tip
Compatible Slide Rail D28 see 092060S01
Properties
| Profile Type | Profile Type B |
|---|---|
| Modular Dimension | Modular Dimension D28 |
| Profile Form | Round Tubular Profiles |
| Pack Quantity | 10 pieces |
| Model | For tubular frame profiles |
| Fixation Span | Panel units with a thickness of 6 - 17 mm |

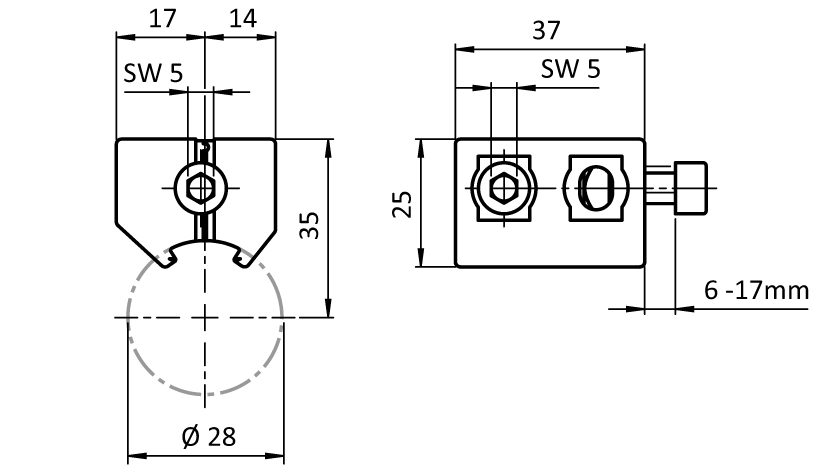

Drawing
From the FATH catalogue (EC-EN, p. 1063)
