FATH

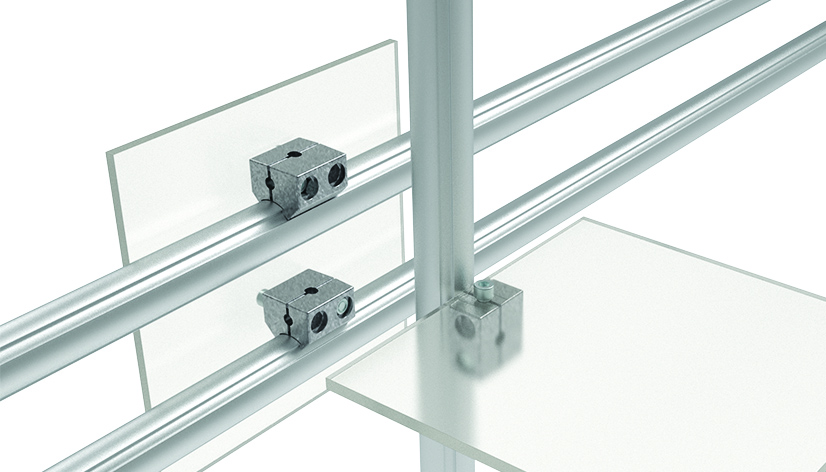

Vario Block AL D30
Part #: 094AD30
To attach panels firmly to tubular frame profiles with Ø 30 mm outer diameter; ESD electrostatical discharging
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 78.4 g
- ECLASS
- 23360492
- Category
- Panel Fixation Blocks D30
Description 094AD30
- Description
To attach panels firmly to tubular frame profiles with Ø 30 mm outer diameter;
ESD electrostatical discharging
- Material
Vario block AL: Aluminum die-cast
Assembly set: Steel
- Set
1 vario block AL - 2-part,
2 screws DIN EN ISO 4762 (DIN 912) - M6 x 20,
1 square nut DIN 557 - M6
2 self-locking nuts DIN EN ISO 4032 (DIN 934) - M6
- Specials
Other surfaces, other colors on request
- Surface
Assembly set: Zinc plated
- Tip
Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC07
Properties
| Profile Type | Profile Type I |
|---|---|
| Modular Dimension | Modular Dimension D30 |
| Profile Form | Round Tubular Profiles |
| Pack Quantity | 10 pieces |
| Model | For tubular frame profiles |

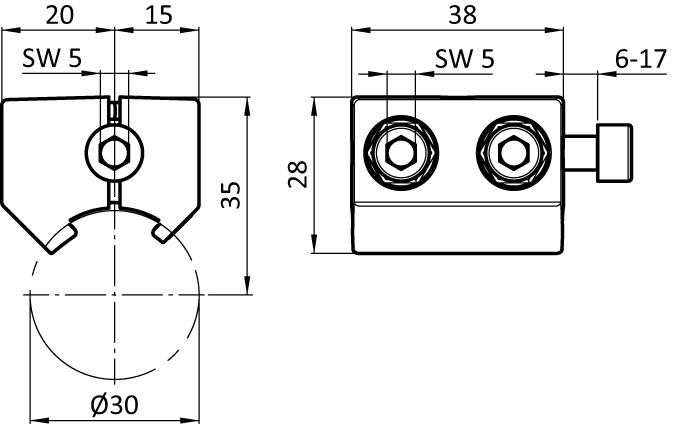

Drawing
From the FATH catalogue (EC-EN, p. 1108)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
