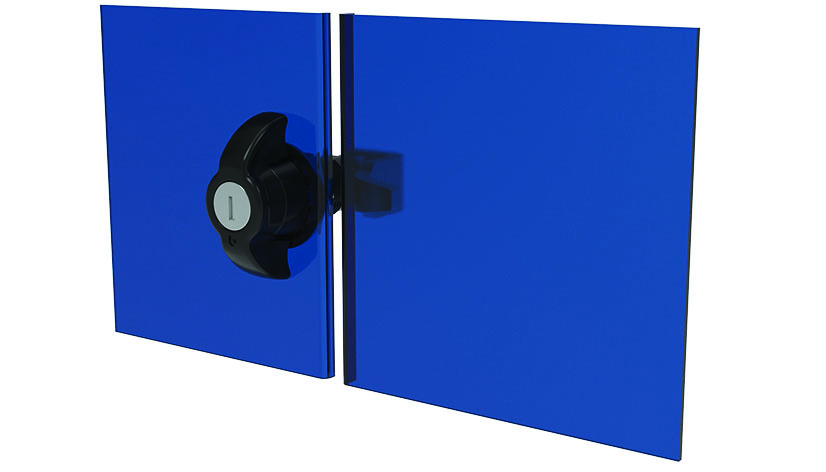

Wing Knob Compression Latch, 22.5 / 32, Long Shaft, incl. Cam (Set)

Part #: 0813099 · 6 variants

For easy, secure and compressive latching and locking of doors and flaps

Quantity

Price, availability and delivery time — we send one quote for all products.

Question about this product?

Technical questions, custom versions or quantities — write or call us.

Versions

Select a version — the description and files below follow your selection.

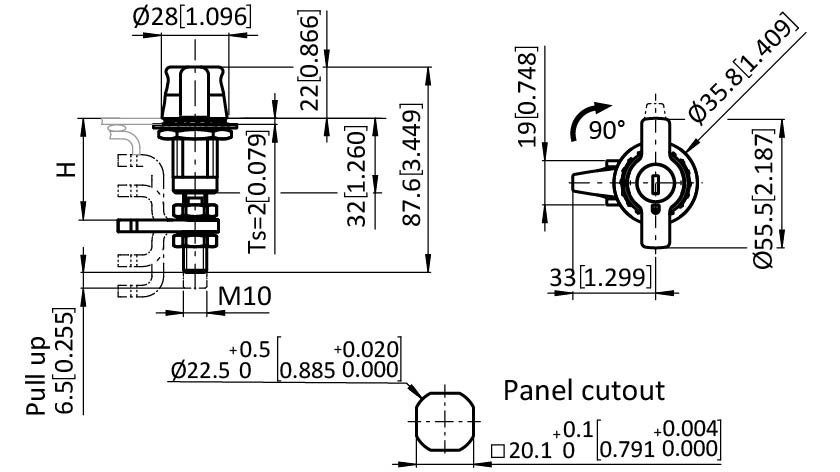

Part #	H (mm)	Insert type
0813099✓ Selected	11.4 - 27.2 / 66.3 - 76.2	Key locking (Keyed FH333)
0813100	25.4 - 41.1 / 52.6 - 68.3	Key locking (Keyed FH333)
0813101	38.9 - 54.6	Key locking (Keyed FH333)
0813102	11.4 - 27.2 / 66.3 - 76.2	Non-locking
0813103	25.4 - 41.1 / 52.6 - 68.3	Non-locking
0813104	38.9 - 54.6	Non-locking

Color

Wing knob Insert: Black

Housing: Black

Seals: Black

Description

For easy, secure and compressive latching and locking of doors and flaps

Material

Wing knob insert: Zinc die-cast

Shaft: Steel

Return spring: Steel

Housing: Zinc die-cast

Cam: Steel

Seals: Rubber NBR

Washer: Steel

Nut: Steel

Assembly material: Steel

Surface

Wing knob insert: Powder coated

Shaft: Zinc plated

Housing: Powder coated

Cam: Zinc plated

Washer: Zinc plated

Nut: Zinc plated

Assembly material: Zinc plated

Application Area	Machinery & Plant Engineering
Pack Quantity	10 pieces

From the FATH catalogue (IH-US-EN, p. 60)

FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
