Zinc Connection Angle 20
Part #: 093W201 · 7 variants

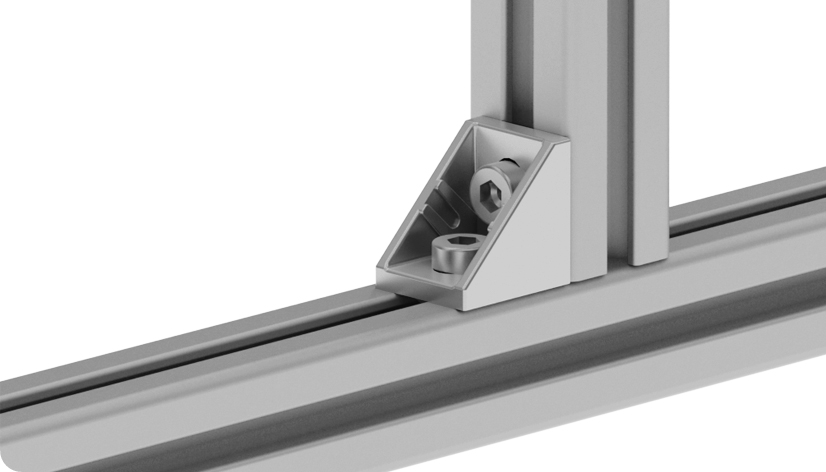

To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover cap
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 13.2 g
- ECLASS
- 23360290
- Category
- Zinc Connection Angles
Versions
Select a version — the description and files below follow your selection.
| Part # | Version | Profile | B (mm) | Surface | Color | Slot N (mm) | Pack Quantity | Add 1 pc to enquiry |
|---|---|---|---|---|---|---|---|---|
| 093W201✓ Selected | - | - | 6.2 | Powder coated | Alu color | - | 10 pieces | |
| 093W201N05 | - | - | 5.5 | Powder coated | Alu color | 5 | 10 pieces | |
| 093W201N05R | - | - | 5.5 | Plain | - | 5 | 1 piece | |
| 093W201N05S01 | incl. assembly set | I | 5.5 | Powder coated | Alu color | 5 | 10 pieces | |
| 093W201N06 | - | - | 6.2 | Powder coated | Alu color | 6 | 10 pieces | |
| 093W201N06R | - | - | 6.2 | Plain | - | 6 | 1 piece | |
| 093W201R | - | - | 6.2 | Plain | - | - | 1 piece |
Description 093W201
- Assembly Set
1 cover cap - plastic PA - black,
2 T-slot nuts - slot 5 - M5,
2 screws DIN 6912 - M5 x 8
- Color
Angle: Alu color
- Description
To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover cap
- Material
Angle: Zinc die-cast
Assembly set: Steel
- Specials
Other surfaces, other colors on request
- Surface
Angle: Plain / Powder coated
Assembly set: Zinc plated
- Tip
Compatible Cover Cap see 093WA201
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Application Area | Machinery & Plant Engineering |
| Pack Quantity | 10 pieces |
| Model | Zinc die-cast |

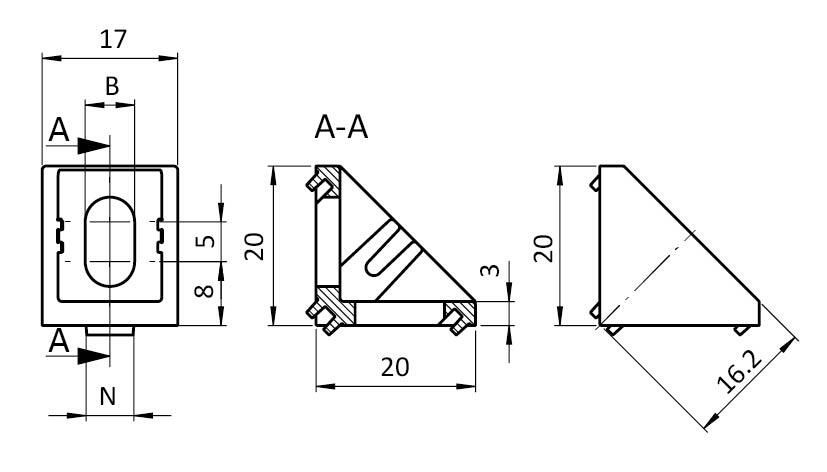

Drawing
From the FATH catalogue (EC-EN, p. 407)
