FATH

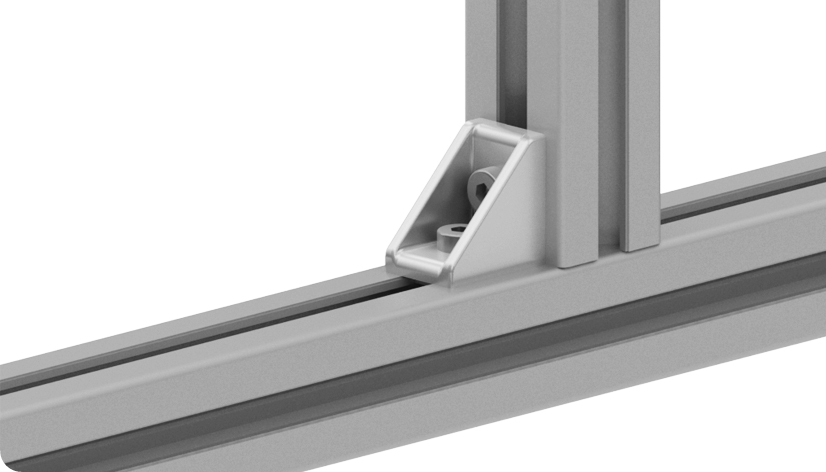

Zinc Connection Angle 20 x 28
Part #: 093W206N08R · 2 variants
To connect two profiles and panels at right angles
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 1 piece
- Weight
- 34 g
- ECLASS
- 23360290
- Category
- Zinc Connection Angles
Versions
Select a version — the description and files below follow your selection.
| Part # | Version | Profile | Slot N (mm) | Pack Quantity | Add 1 pc to enquiry |
|---|---|---|---|---|---|
| 093W206N08R✓ Selected | - | - | 8 | 1 piece | |
| 093W206N08RS02 | incl. assembly set | B | 8 | 10 pieces |
Description 093W206N08R

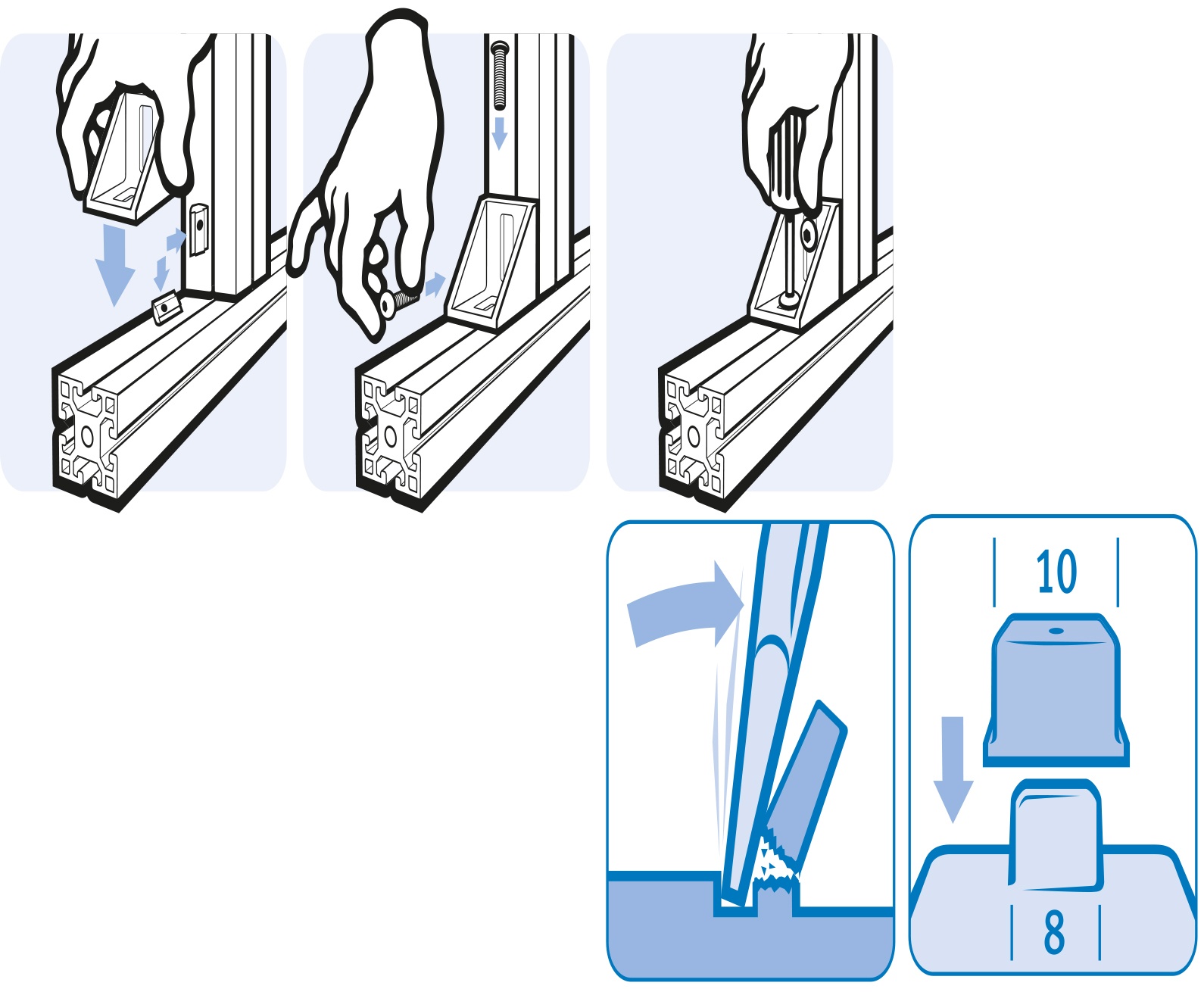

- Assembly Set
2 hammer nuts - slot 8 - M6,
2 screws DIN 7984 - M6 x 12
- Description
To connect two profiles and panels at right angles
- Material
Angle: Zinc die-cast
Assembly set: Steel
- Specials
Other surfaces, other colors on request
- Surface
Angle: Plain
Assembly set: Zinc plated
- Tip
Compatible Centering Piece Widening Slot 8 to Slot 10 see 093W02
Properties
| Profile Type | Profile Type B |
|---|---|
| Slot Size | Slot 8 |
| Application Area | Machinery & Plant Engineering |
| Pack Quantity | 1 piece |
| Model | Zinc die-cast |

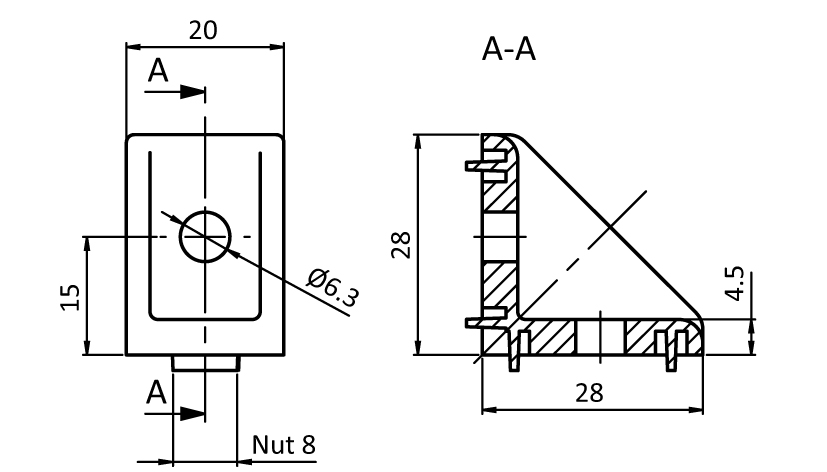

Drawing
From the FATH catalogue (EC-EN, p. 408)
