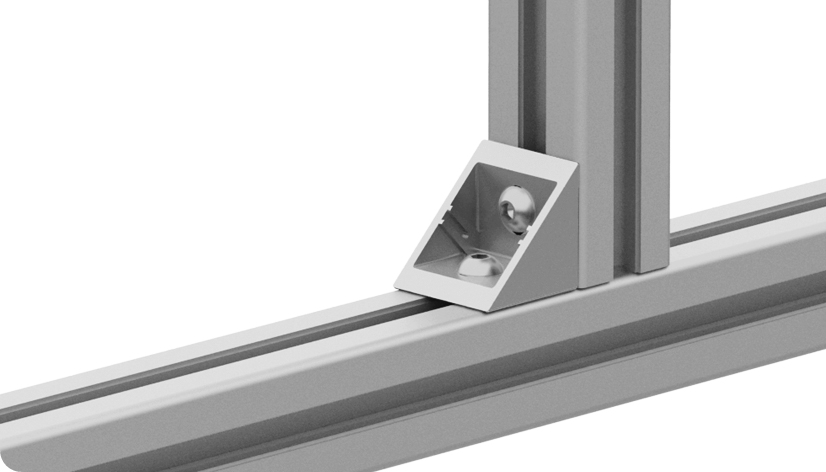

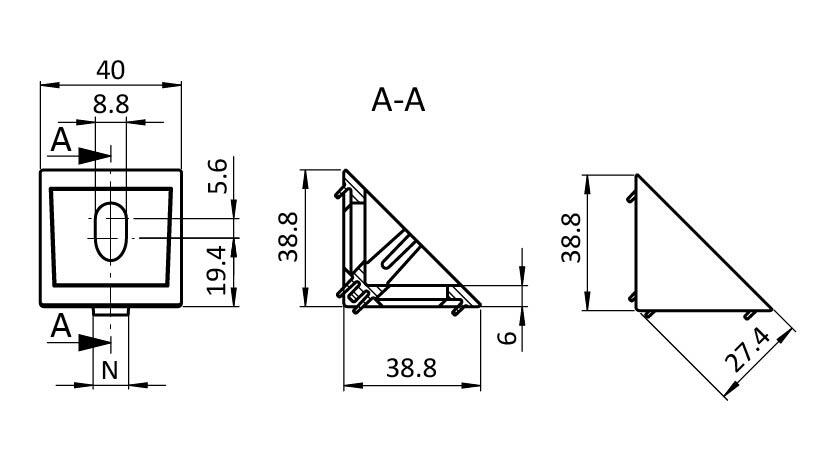

Zinc Connection Angle 40 flat

Part #: 093W401 · 7 variants

To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover cap

Quantity

Price, availability and delivery time — we send one quote for all products.

Question about this product?

Technical questions, custom versions or quantities — write or call us.

Versions

Select a version — the description and files below follow your selection.

Part #	Version	Profile	Surface	Color	Slot N (mm)	Pack Quantity
093W401✓ Selected	-	-	Powder coated	Alu color	-	10 pieces
093W401N08	-	-	Powder coated	Alu color	8	10 pieces
093W401N08R	-	-	Plain	-	8	100 pieces
093W401N08S03	incl. assembly set	I	Powder coated	Alu color	8	10 pieces
093W401N10	-	-	Powder coated	Alu color	10	10 pieces
093W401N10R	-	-	Plain	-	10	1 piece
093W401R	-	-	Plain	-	-	1 piece

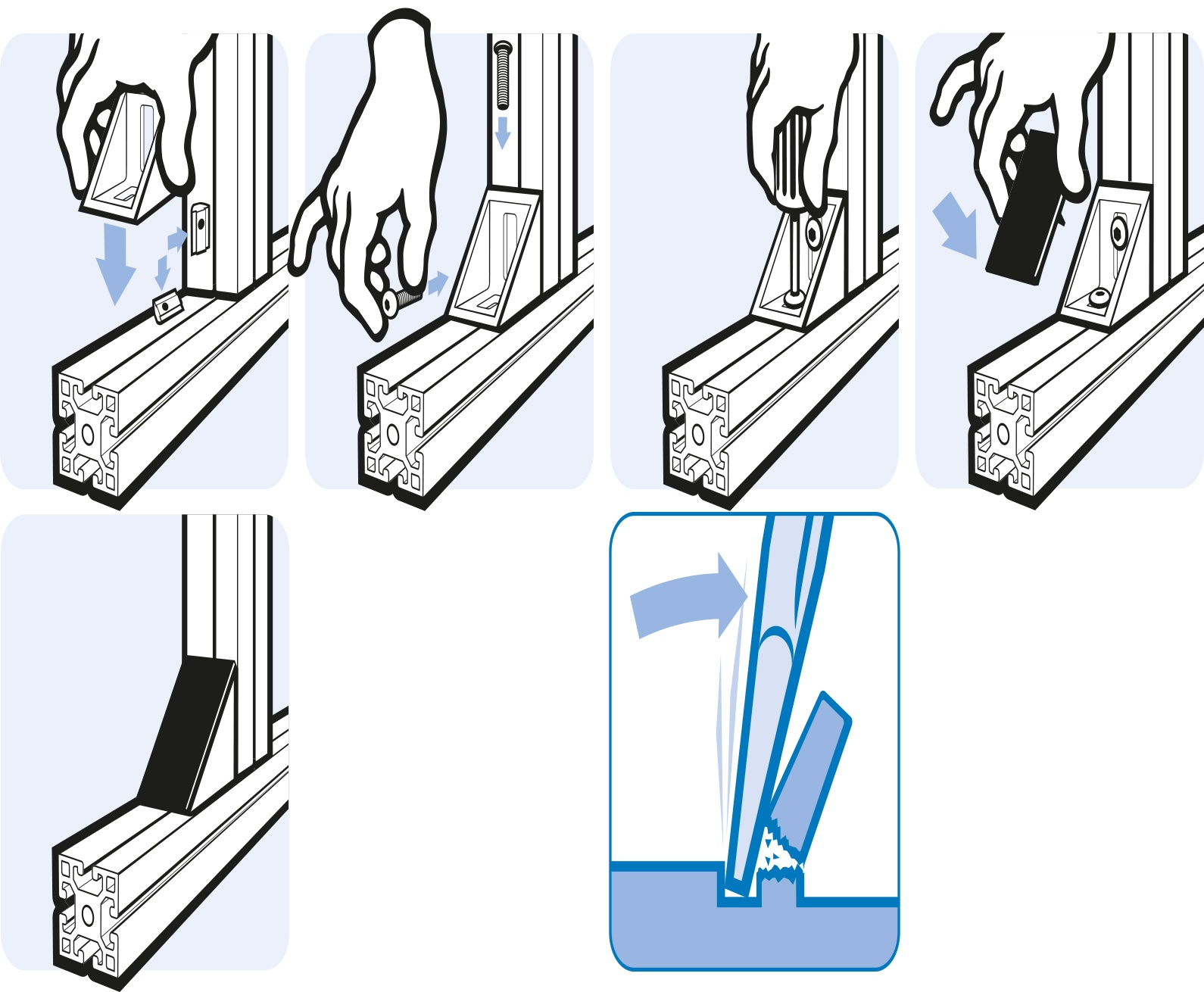

Assembly Set

1 Cover cap - Plastic PA - black,

2 T-slot nuts - slot 8 - M8,

2 Screws DIN EN ISO 7380 (DIN 34805) - M8 x 16

Color

Angle: - / alu color

Cover cap: Black

Description

To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover cap

Material

Angle: Zinc die-cast

Cover cap: Plastic PA, glass fiber reinforced

Assembly set: Steel

Specials

Other surfaces, other colors on request

Surface

Angle: Plain / Powder coated

Assembly set: Zinc plated

Tip

Compatible Cover Cap see 093WA401

Profile Type	Profile Type B, Profile Type I
Application Area	Machinery & Plant Engineering
Pack Quantity	10 pieces
Model	Zinc die-cast

From the FATH catalogue (EC-EN, p. 410)

FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.

Referenced in the description — nuts, plates, caps, assembly sets.
