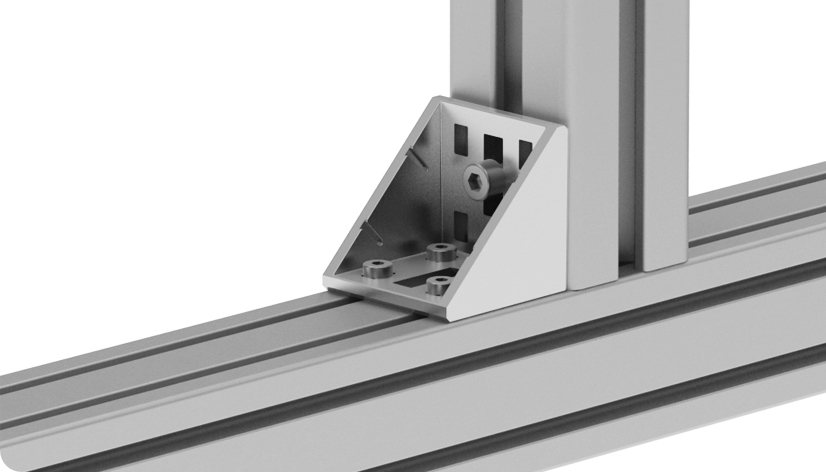

Zinc Connection Angle 60
Part #: 093W601 · 6 variants
To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover cap
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 224 g
- ECLASS
- 23360290
- Category
- Zinc Connection Angles
Versions
Select a version — the description and files below follow your selection.
| Part # | Surface | Color | Slot N (mm) | Pack Quantity | Add 1 pc to enquiry |
|---|---|---|---|---|---|
| 093W601✓ Selected | Powder coated | Alu color | - | 10 pieces | |
| 093W601N08 | Powder coated | Alu color | 8 | 10 pieces | |
| 093W601N08R | Plain | - | 8 | 1 piece | |
| 093W601N10 | Powder coated | Alu color | 10 | 10 pieces | |
| 093W601N10R | Plain | - | 10 | 1 piece | |
| 093W601R | Plain | - | - | 1 piece |
Description 093W601
- Color
Angle: Alu color
- Description
To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover cap
- Material
Angle: Zinc die-cast
Assembly set: Steel
- Specials
Other surfaces, other colors on request
- Surface
Angle: Plain / Powder coated
- Tip
Compatible Cover Cap see 093WA601
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Application Area | Machinery & Plant Engineering |
| Pack Quantity | 10 pieces |
| Model | Zinc die-cast |

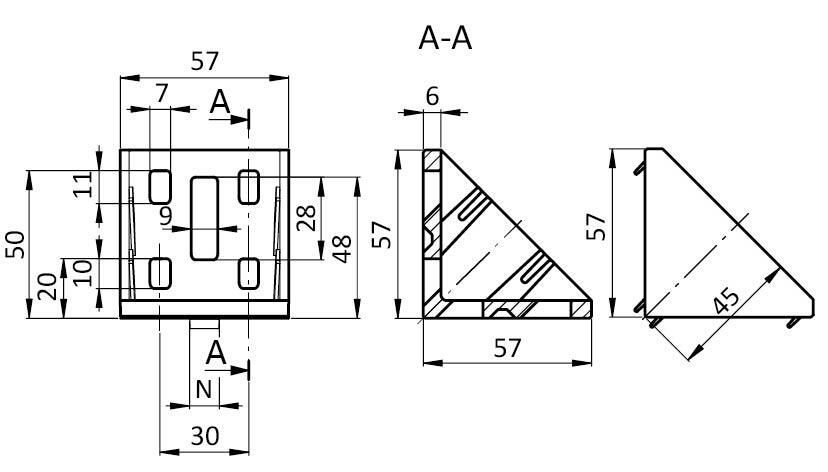

Drawing
From the FATH catalogue (EC-EN, p. 417)
