FATH

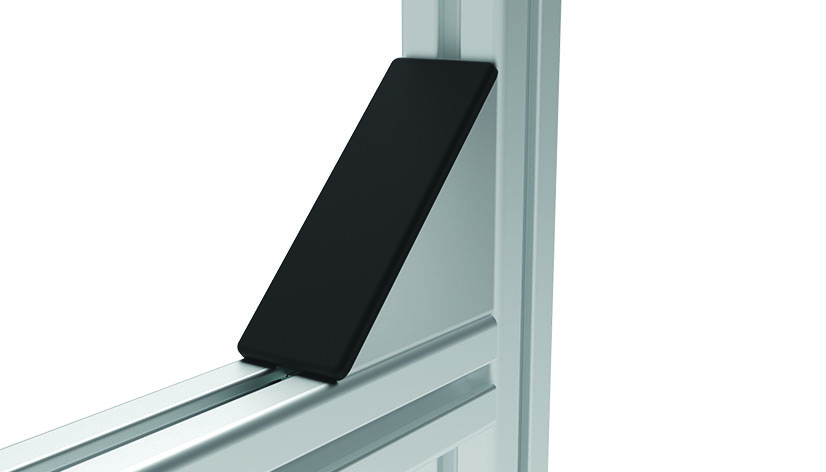

Zinc Connection Angle I 40 x 80 flat (Set)
Part #: 093W8010N08S01
To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover cap
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 399.2 g
- ECLASS
- 23360290
- Category
- Zinc Connection Angles
Description 093W8010N08S01
- Color
Angle: Alu color
Cover cap: Black
- Description
To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover cap
- Material
Angle: Zinc die-cast
Cover cap: Plastic PA, glass fiber reinforced
Assembly set: Steel
- Set
1 connection angle
1 cover cap
4 T-slot nut - slot 8 - M8
4 screws DIN EN ISO 7380 (DIN 34805) - M8 x 18
4 washer
- Specials
Other sizes, other surfaces on request
- Surface
Angle: Powder coated
Screws: Zinc plated
T-slot nuts: Zinc plated
Properties
| Profile Type | Profile Type I |
|---|---|
| Application Area | Machinery & Plant Engineering |
| Pack Quantity | 10 pieces |
| Model | Zinc die-cast |

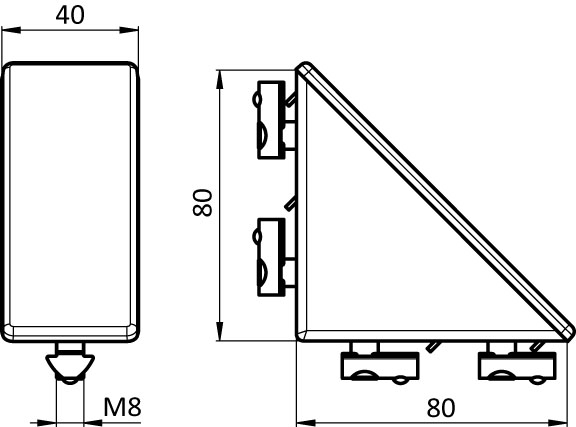

Drawing
From the FATH catalogue (EC-EN, p. 416)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
