FATH

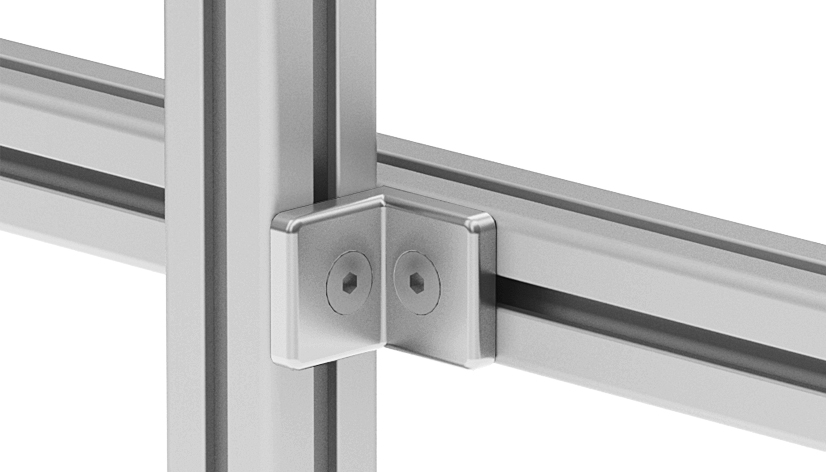

Zinc Connection Angle V 40 (Set)
Part #: 093WI40N08S01
To connect two aluminum profiles or panels at right angles; particularly suitable for fixing horizontal profiles between upright profiles or for attaching other components to profiles; with turn-lock slot 8 on one of the rear sides
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 164.7 g
- ECLASS
- 23360290
- Category
- Zinc Connection Angles
Description 093WI40N08S01
- Color
Alu color
- Description
To connect two aluminum profiles or panels at right angles; particularly suitable for fixing horizontal profiles between upright profiles or for attaching other components to profiles; with turn-lock slot 8 on one of the rear sides
- Material
Connection angle: Zinc die-cast
Screws and T-slot nuts: Steel
- Set
1 connection angle V40 - slot 8,
2 screws DIN EN ISO 10642 (DIN 7991) - M8 x 18,
2 T-slot nuts - slot 8 - M8
- Specials
Other surfaces, other colors on request
- Surface
Connection Angle: Powder coated
Screws and T-solt nuts: Zinc plated
Properties
| Profile Type | Profile Type I |
|---|---|
| Slot Size | Slot 8 |
| Pack Quantity | 10 pieces |
| Model | Zinc die-cast, slot 8 |

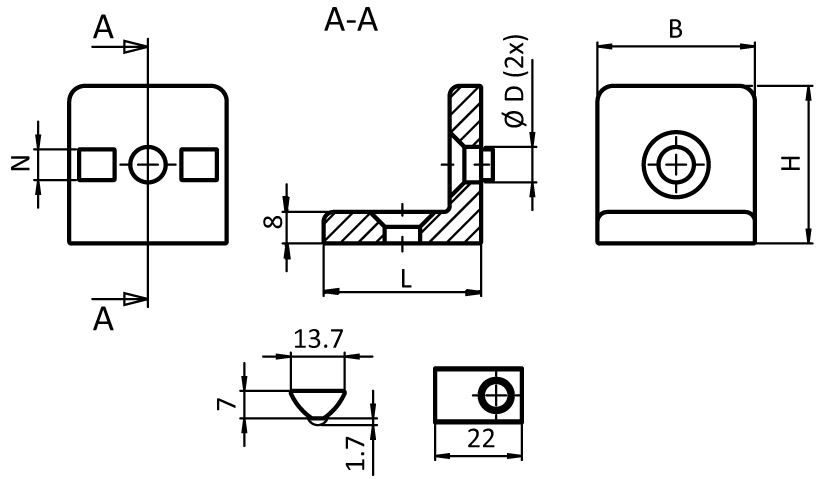

Drawing
From the FATH catalogue (EC-EN, p. 414)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
