Zinc Die-Cast Hinge 40 EH with Locking Lever
Part #: 095300F · 3 variants
For panels and aluminum profiles, can be locked in any position
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 197 g
- ECLASS
- 23219090
- Category
- Zinc Die-Cast Hinges · Zinc Die-Cast Hinges
Versions
Select a version — the description and files below follow your selection.
| Part # | Slot N (mm) | FRmax (N) | Add 1 pc to enquiry |
|---|---|---|---|
| 095300F✓ Selected | - | 1200 | |
| 095300FN08 | 8 | 1200 | |
| 095300FN10 | 10 | 1200 |
Description 095300F
- Color
Black
- Description
For panels and aluminum profiles, can be locked in any position
- Fastening
From the front, using M8 screws
- Material
Wings: Zinc die-cast
KIPP locking lever: Plastic PA, glass fiber reinforced
Mechanism: Steel, black zinc plated (RoHS conform)
- Specials
Other surfaces, other colors on request
- Surface
Powder coated
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Application Area | Machinery & Plant Engineering |
| Pack Quantity | 10 pieces |
| Model | Non-detachable |

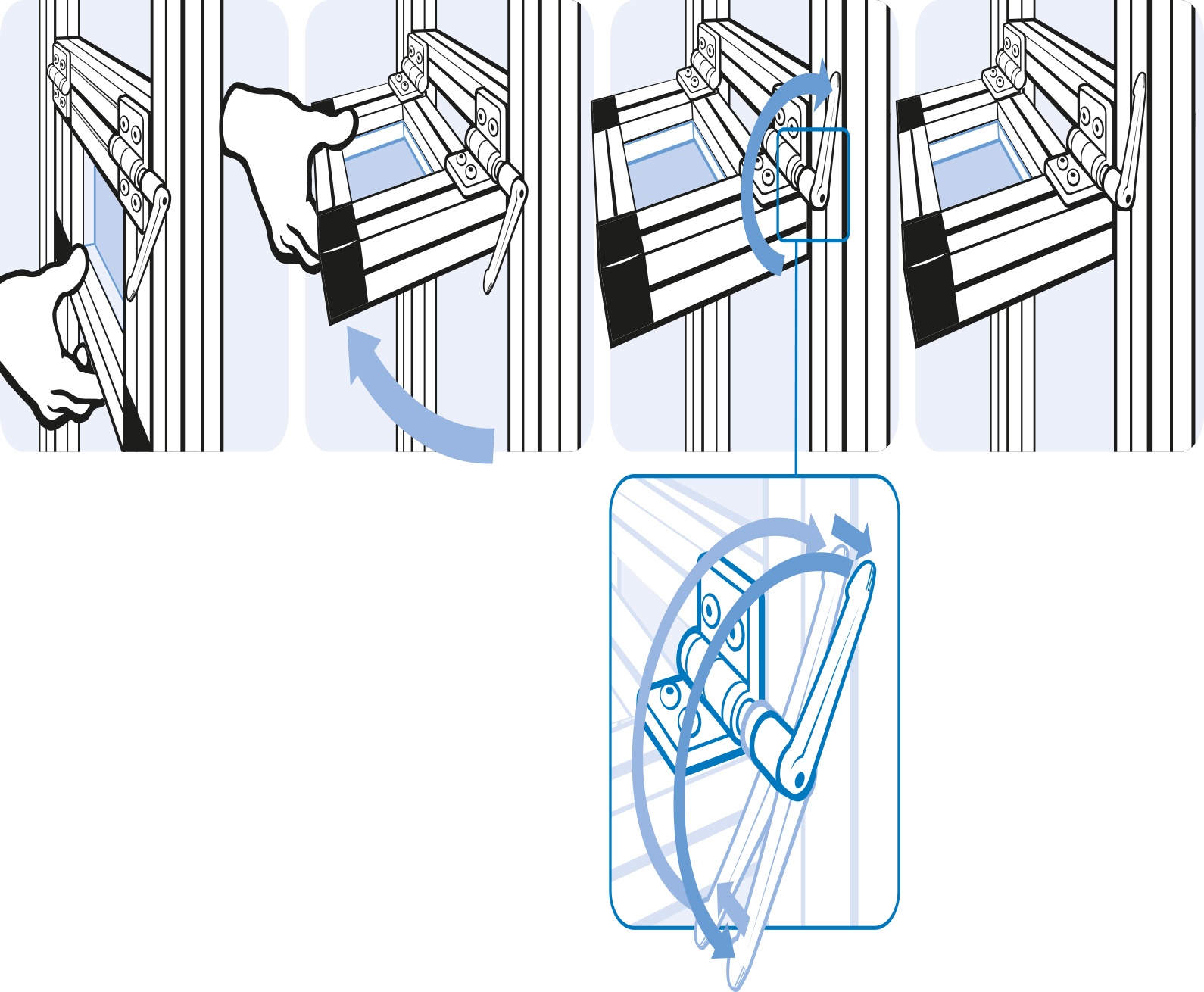

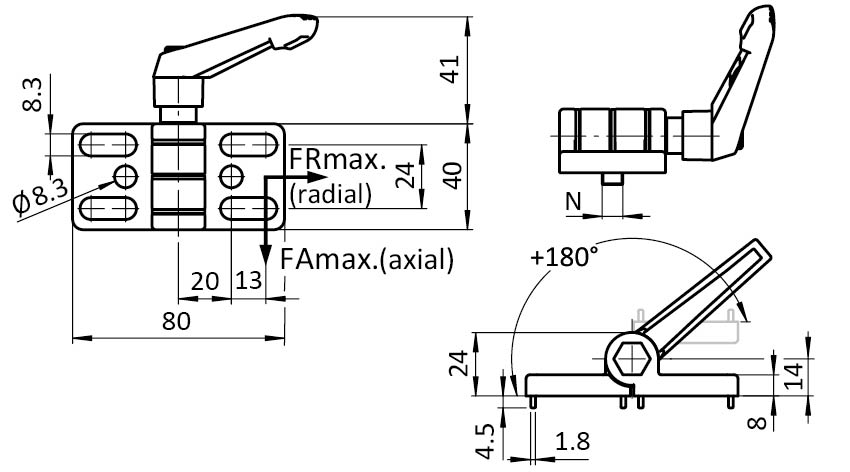

Drawing
From the FATH catalogue (EC-EN, p. 233)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
